CASE STUDY

10282: PROJECT FEEDING COLF FORGED BILLETS INTO PRESS

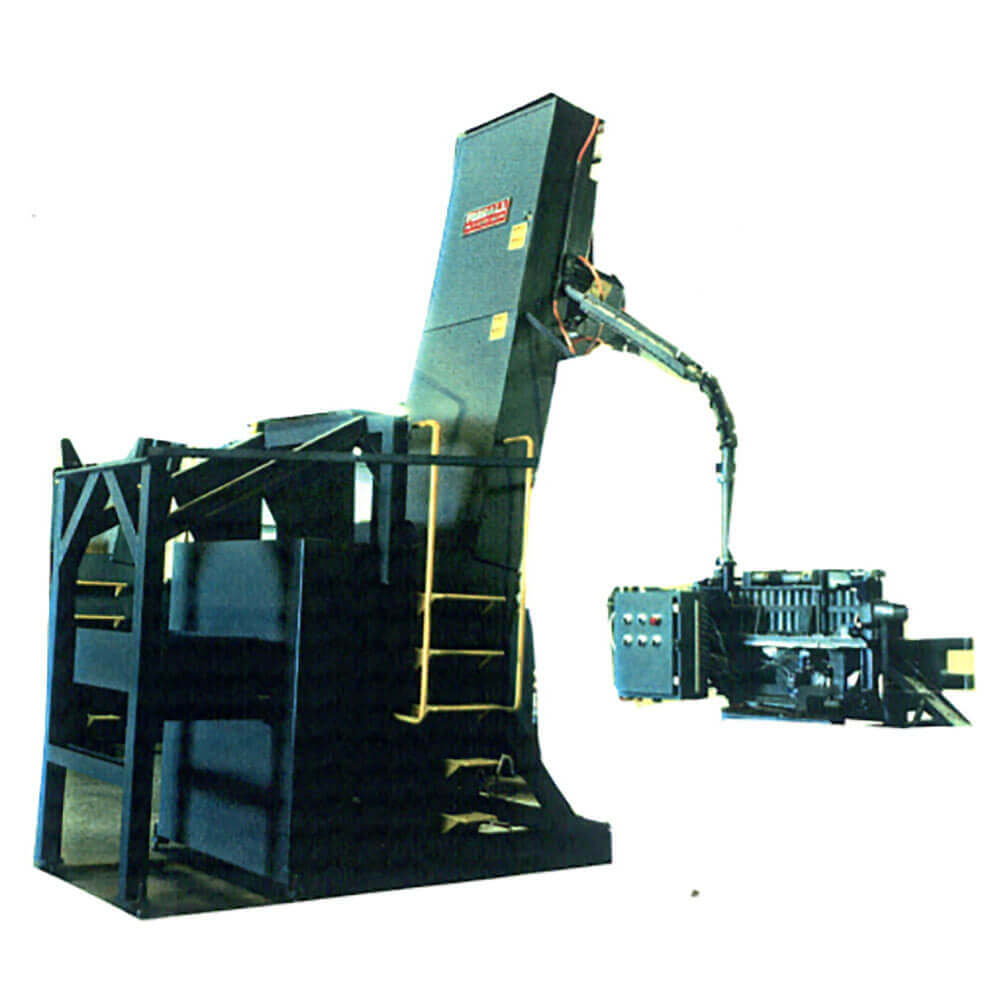

Feedall Model
Model 2500 HD

APPLICATION

Feed from a random loaded floor mounted hopper, cold forge billets 1 1/2 to 2″ DIA. X 5 1/2 to 10″ LG. The billets will be oriented end to end and fed to a vertical position 55″ above the floor, then one billet at a time will be advanced standing on end diameter to diameter in a horizontal magazine to a vertical lifter. Then one billet at a time will be lifted and transferred into the press at a rate of 25 to 35 parts per minute.
12″ wide elevator belt, 30 CU. FT. Hopper.
DWG. PD 6941 R 3

WIDTH

12" wide elevator belt

FEED RATE

25 to 35 parts per minute
