CASE STUDY

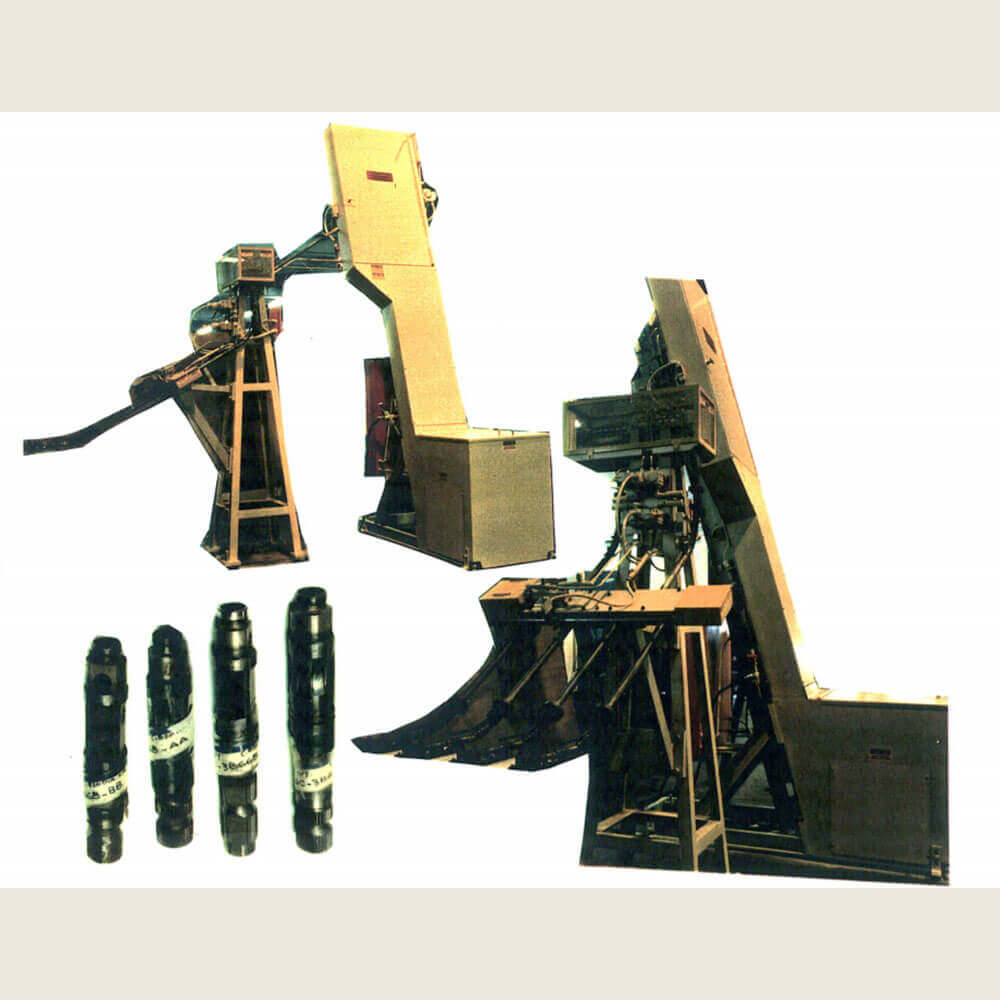

10518: PROJECT FEEDING OIL PUMP DRIVE SHAFTS INTO REAMING MACHINE

Feedall Model
Model 2400 D

APPLICATION

Feed from a random loaded floor mounted hopper, power steering gear input shafts. The shafts will be fed end to end then oriented small end leading then shuttled into four streams and discharged at a height of 42″ above the floor, 8″ apart at a feed rate of 640 to 800 per hour feeding a dial for a reamer.
7 1/2″ wide elevator belt, 6 CU. FT. Hopper.
DWG. P 7314 R 5

WIDTH

7 1/2" wide elevator belt

FEED RATE

640 to 800 per hour
