CASE STUDY

10577: PROJECT FEEDING TRACK PINS INTO CENTERLESS GRINDER

Feedall Model
Model 1700 224

APPLICATION

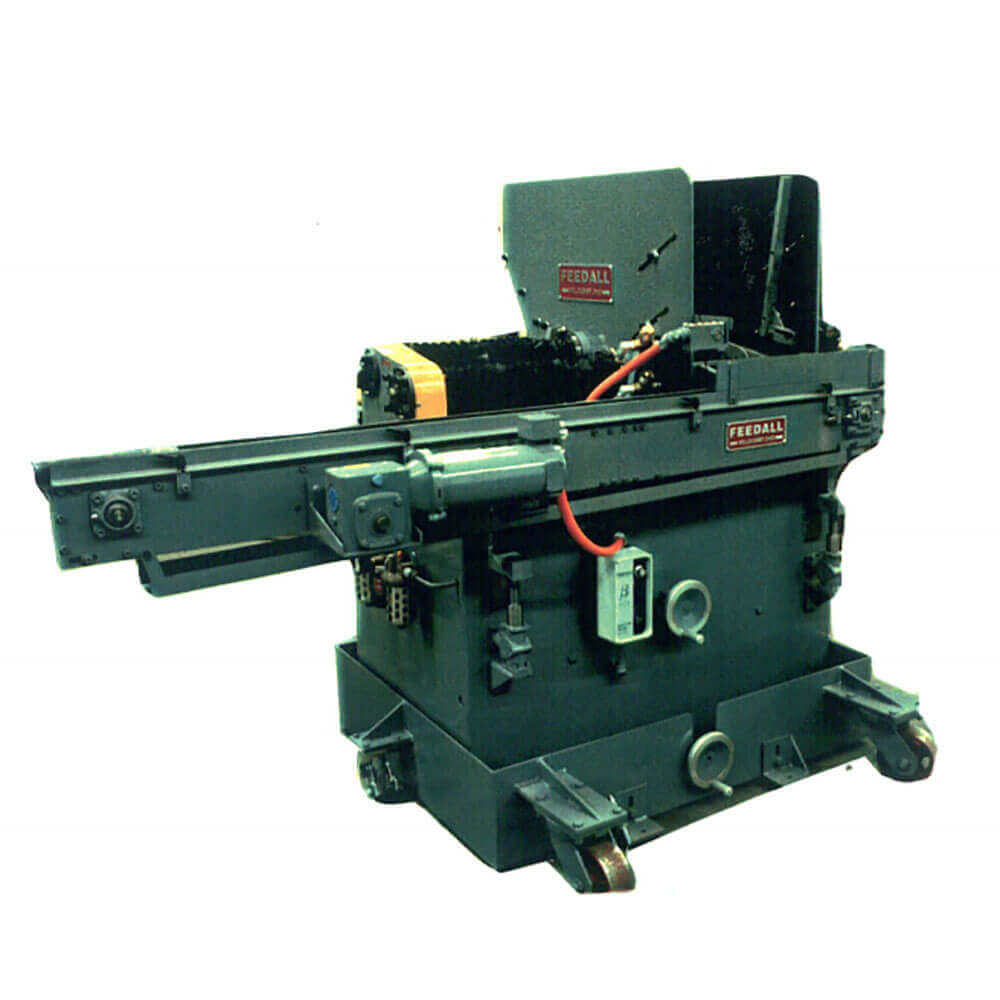

Feed from a manually loaded magazine, steel pins 1/2 to 2 1/4″ DIA. X 6 to 24″ LG. The pins will be escaped rolling one at a time to the front mounted conveyor then fed end to end to a centerless grinder at 42″ above the floor.
Note: this machine was equipped with optional dual camshafts, hand wheel and screw jack, conveyor height adj. and caster cart.
DWG. PD 7391
