CASE STUDY

11861: PROJECT FEEDING SPOOL SHAFTS INTO REAMING MACHINE

Feedall Model
Model 2400 D

APPLICATION

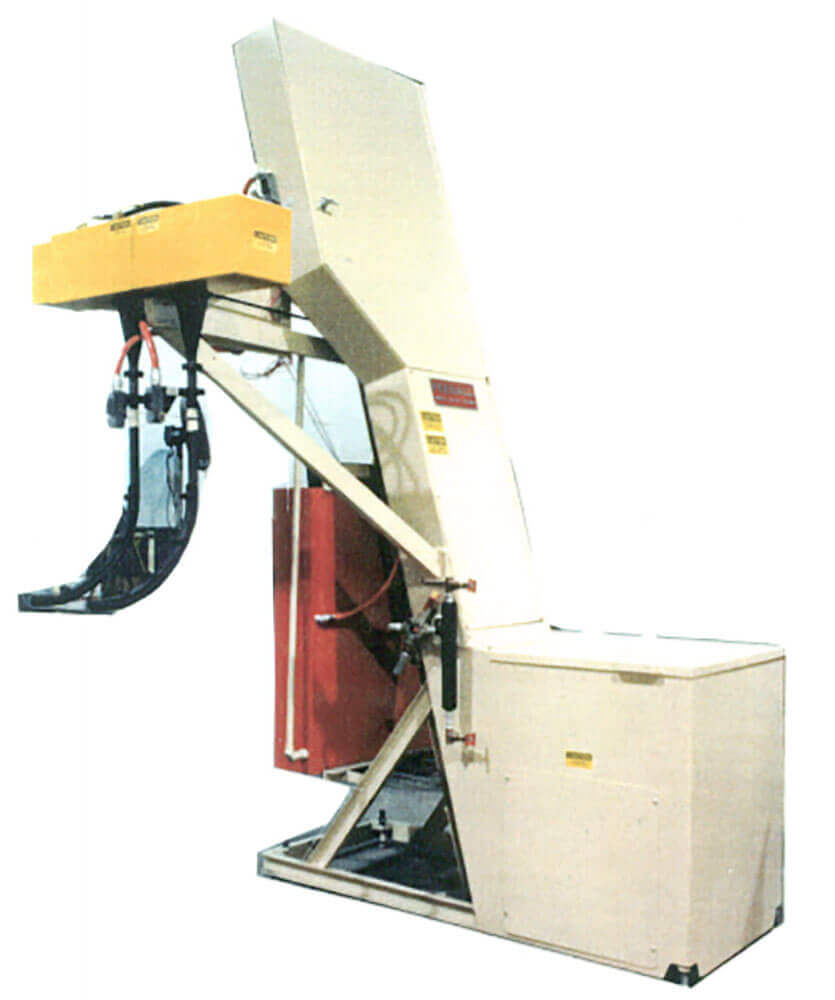

Feed from a random loaded floor mounted hopper, power steering input shafts. The shafts will be elevated from the hopper then fed end to end and oriented small DIA. end leading and fed into two independently satisfied vertical chutes to a horizontal position, 10 1/2″ apart, 45″ above the floor at a rate of two parts every 15 seconds, for loading into dial for a reaming machine.
7 1/2″ wide elevator belt, 6 CU. FT. Hopper.
DWG. PD 8210 R 1

WIDTH

7 1/2" wide elevator belt

FEED RATE

2 parts every 15 seconds
