CASE STUDY

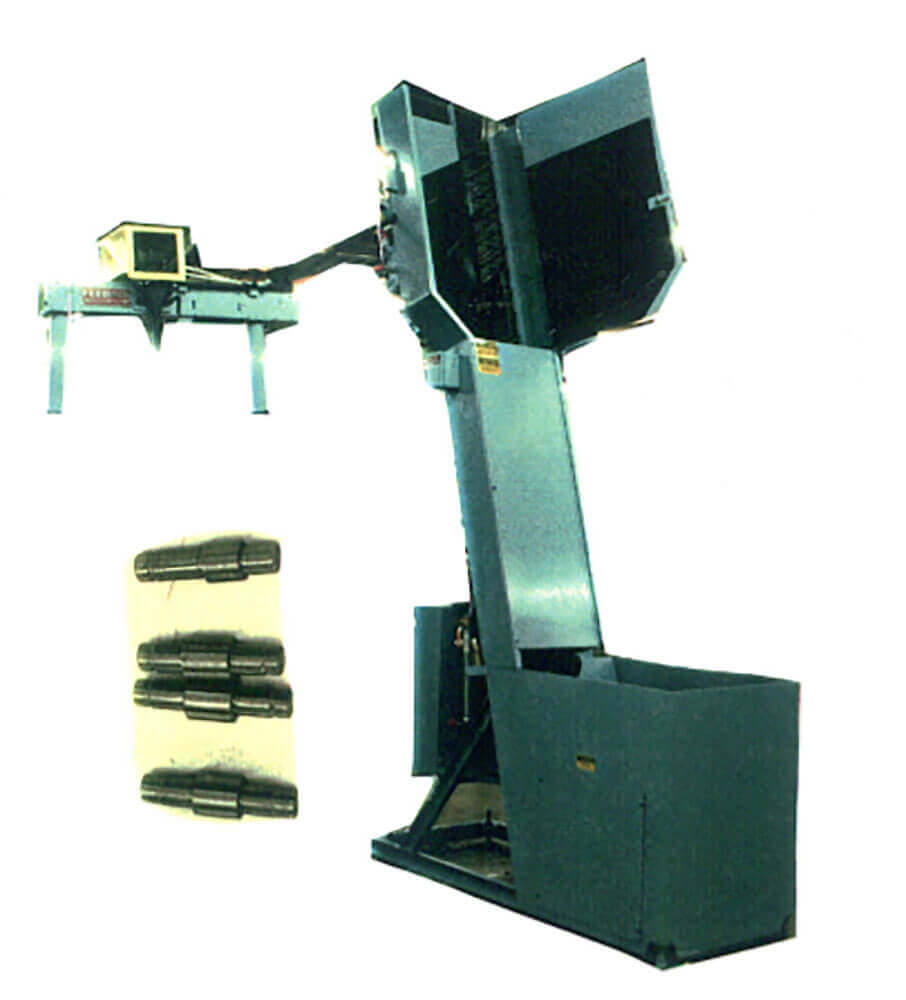

11918: PROJECT FEEDING PINION SHAFTS INTO BROACH

Feedall Model
Model 2400 D

APPLICATION

Feed from a random loaded floor mounted hopper, pinion shafts of various sizes, the shafts will first be oriented end to end then fed to a conveyor then oriented long end of each shaft down to a vertical chute at 88″ above the floor at a rate of 600 per hour.
7 1/2″ wide elevator belt, 6 CU. FT. Hopper.
DWG. P 8232 R 2

WIDTH

7 1/2" wide elevator belt

FEED RATE

600 per hour
