12193: PROJECT FEEDING ARMATURE SHAFTS INTO THREAD ROLLER

Feedall Model
Model 2000

APPLICATION

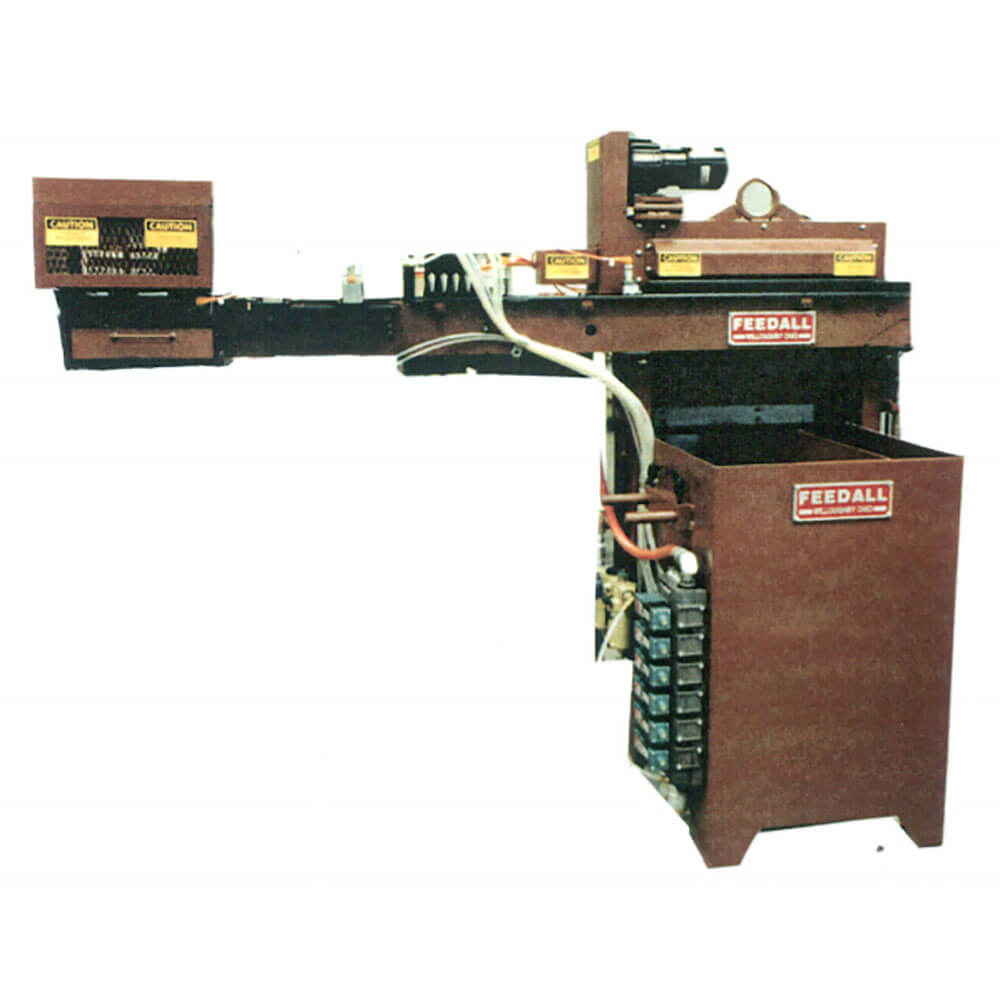

Feed from a manually stacked floor hopper .375″ DIA. X 4 to 8.500″ LG. armature shafts. The shafts will be elevated the discharged rolling to a cross conveyor then conveyed thru an air blast into a laser mike station then to an eject-reject device then each correct shaft will be transferred into a single row magazine then escaped rolling one at a time on signal from a thread roller at 40 1/2″ above the floor at a rate of 30 per minute.
20″ wide elevator belt, 1.8 CU. FT. Hopper DWG P 8357 R

WIDTH

20" wide elevator belt

FEED RATE

30 per minute
