CASE STUDY

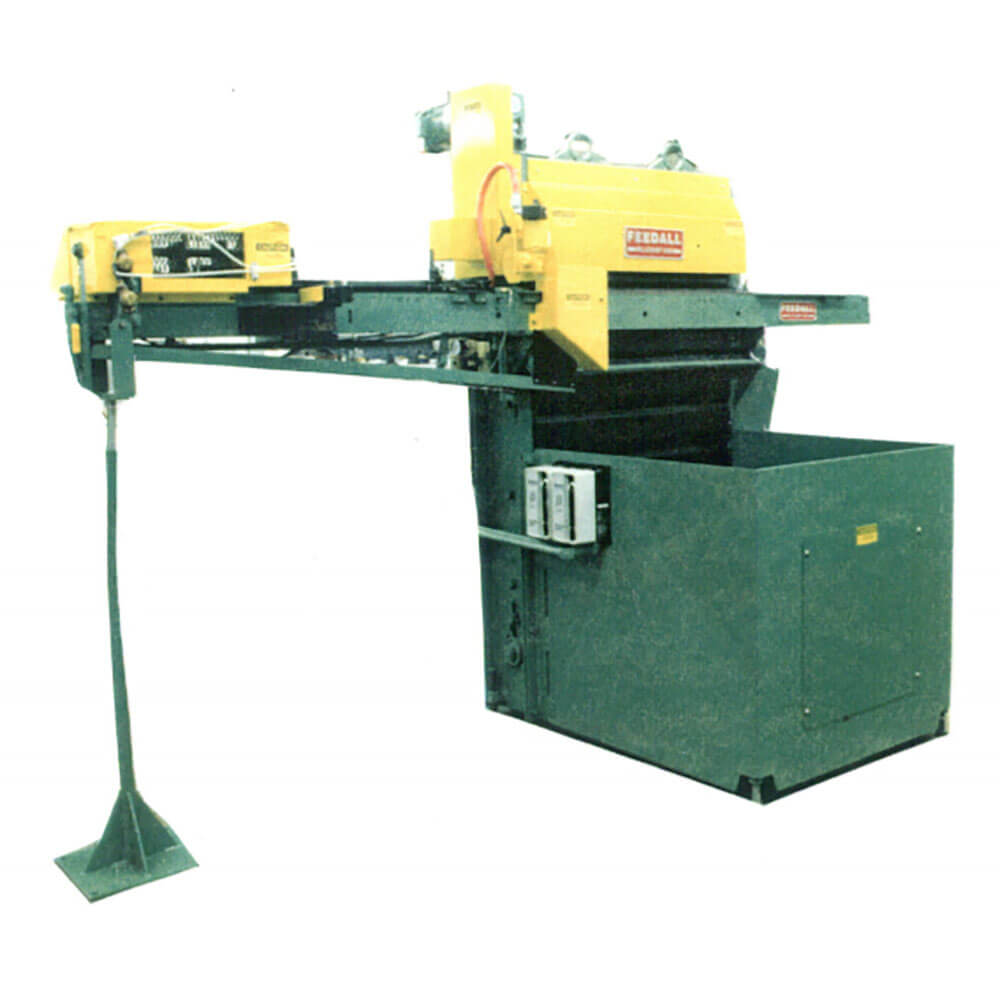

12226: PROJECT FEEDING THREADED STUDS INTO ASSEMBLY MACHINE

Feedall Model
Model 3600

APPLICATION

Feed from a random loaded floor mounted hopper threaded studs 1/2, 5/8, 3/4, 7/8 and 1″ DIA. X 2 to 10″ LG. The studs will be elevated from the hopper then discharged rolling to the front cross conveyer then fed end to end to a transfer device then transferred rolling at a height of 54″ above the floor to a nut installer at a rate of 60 per minute.
36″ wide elevator, 12 CU. FT. Hopper.

WIDTH

36" wide elevator

FEED RATE

60 per minute
