CASE STUDY

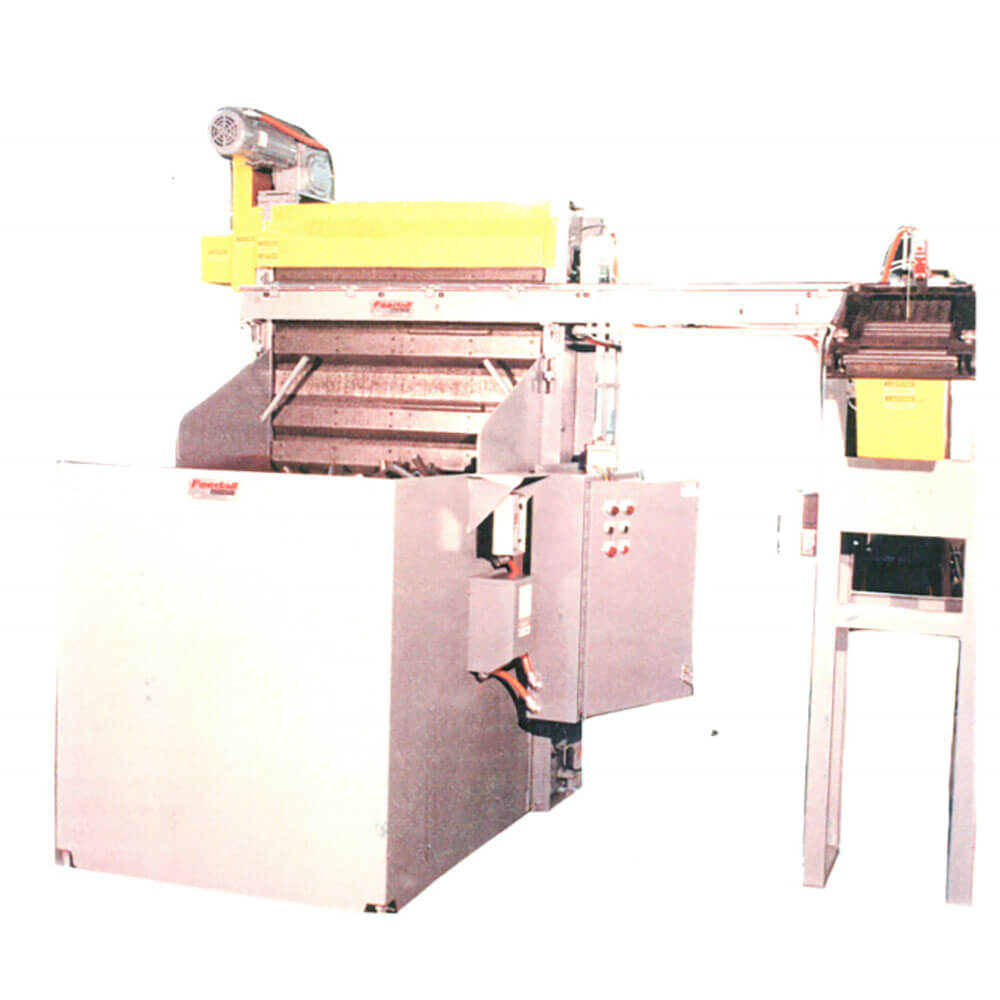

12286: PROJECT FEEDING STEEL BILLETS INTO INDUCTION HEATER

Feedall Model
Model 4800

APPLICATION

Feed from a random loaded floor mounted hopper shear cut steal billets 1 9/32 to 1 3/4 DIA. X 10 to 15″ LG. The billets will be elevated from the hopper then discharged rolling to the front mounted cross conveyor then fed end to end to a transfer device then transferred rolling into a single row magazine and escaped one at a time on a signal to a walking beam at 71″ above the floor at a rate of 300 to 500 billets per hour.
48″ wide elevator belt, 30 CU. FT. Hopper
DWG. PD 8410 R2

WIDTH

48" wide elevator belt

FEED RATE

300 to 500 billets per hour
