CASE STUDY

12379: PROJECT FEEDING ARMATURE SHAFTS INTO CENTERLESS GRINDER

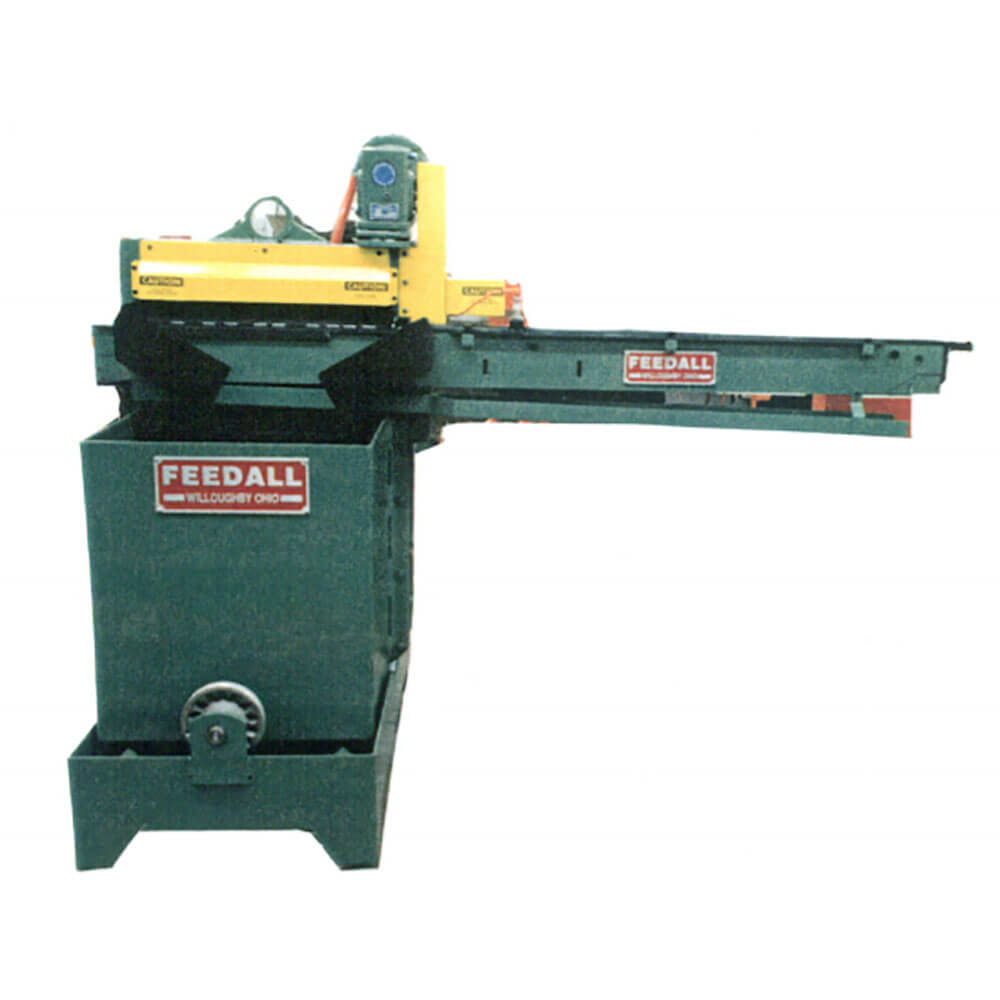

Feedall Model
Model 2000

APPLICATION

Feed from a manually stacked or random loaded floor mounted hopper armature shafts .320 to .381″ DIA. X 2 to 8″ LG. The shafts will be elevated then discharged rolling onto the cross conveyor then fed end to end in a continuous stream to a centerless grinder at 42 3/4″ above the floor at a rate of 200″ per minute.
20″ wide elevator belt, 1.8 CU. FT. Hopper
DWG. 8496 R

WIDTH

20" wide elevator belt

FEED RATE

200" per minute
