CASE STUDY

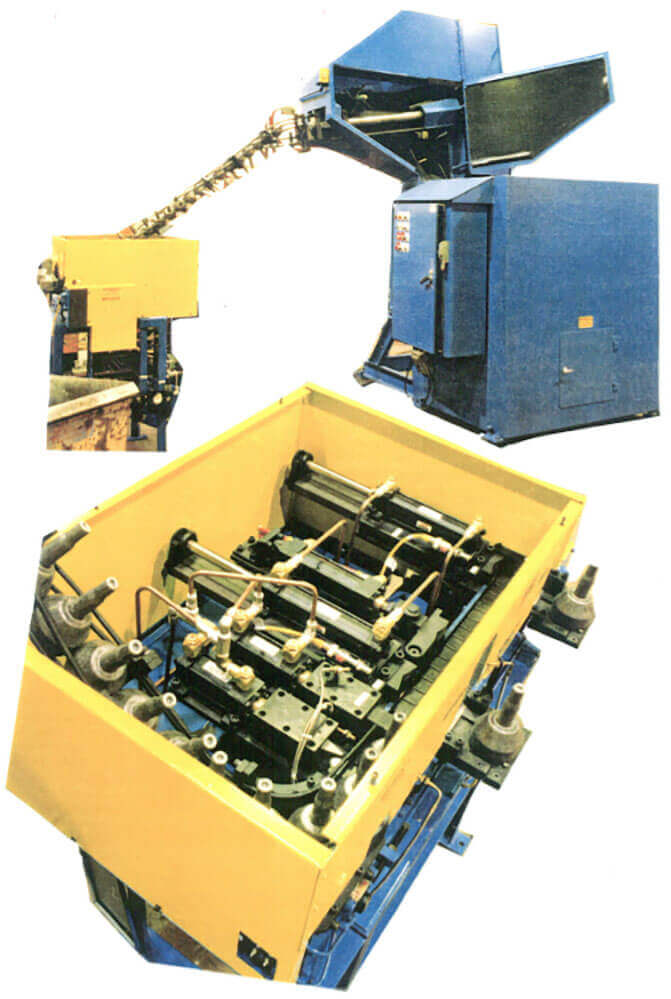

12840: PROJECT FEEDING CONSTANT VELOCITY JOINT RACES INTO CNC TURNING CENTER

Feedall Model
Model HD

APPLICATION

Feed from a random loaded floor mounted hopper, auto cv joint outer races. The races are to be oriented stem up in an axis vertical position in two independently controlled stream, then positioned on demand to one or two robots pick up points located 18″ apart and 45″.
12″ wide elevator belt, CU. FT. Hopper.
DWG. PD 8852 R 2

WIDTH

12" wide elevator belt
