CASE STUDY

13301: PROJECT FEEDING VALVE SEAT INSERTS INTO DOUBLE DISC GRINDER

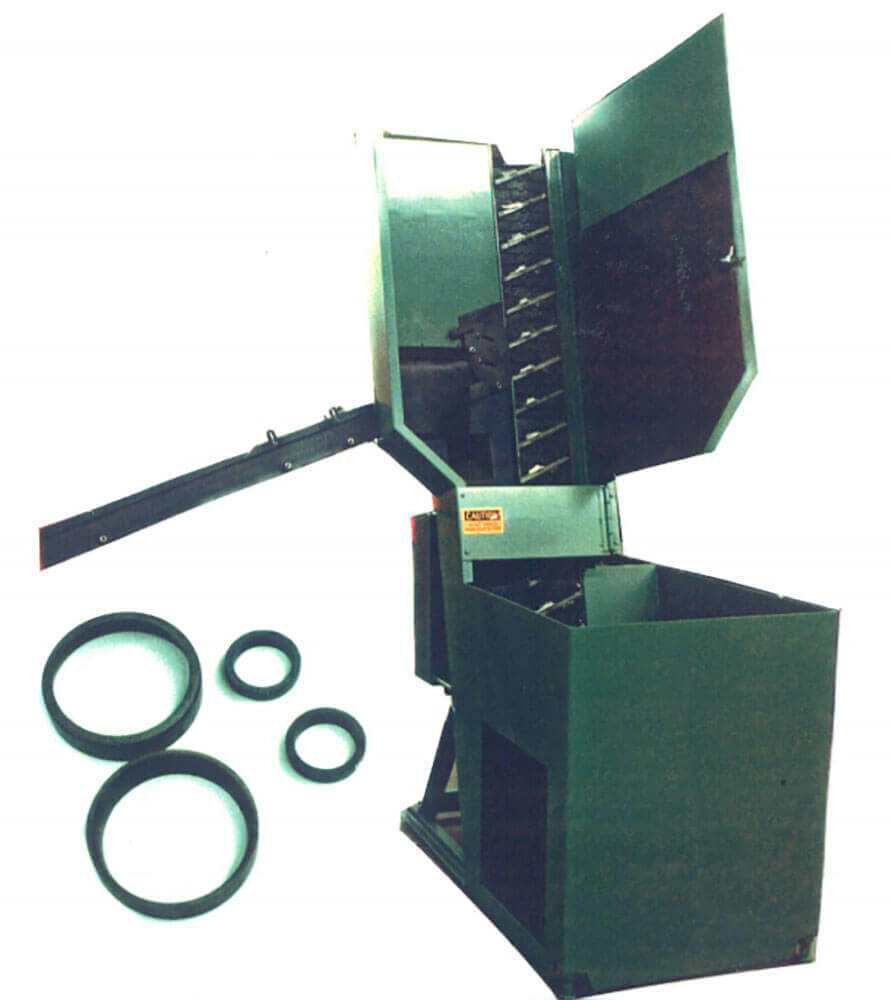

Feedall Model
Model 2400 D

APPLICATION

Feed from a random loaded floor mounted hopper, valve seat inserts 1.00 to 2.25″ DIA. X .20 to .50 thick. The seats will be oriented diameter to diameter in a single stream and fed to a height of 42″ above the floor at a rate of 200 per minute to a face grinder.
7 1/2″ wide elevator, 6 CU. FT. Hopper.
DWG. P 9179

WIDTH

7 1/2" wide elevator

FEED RATE

200 per minute
