CASE STUDY

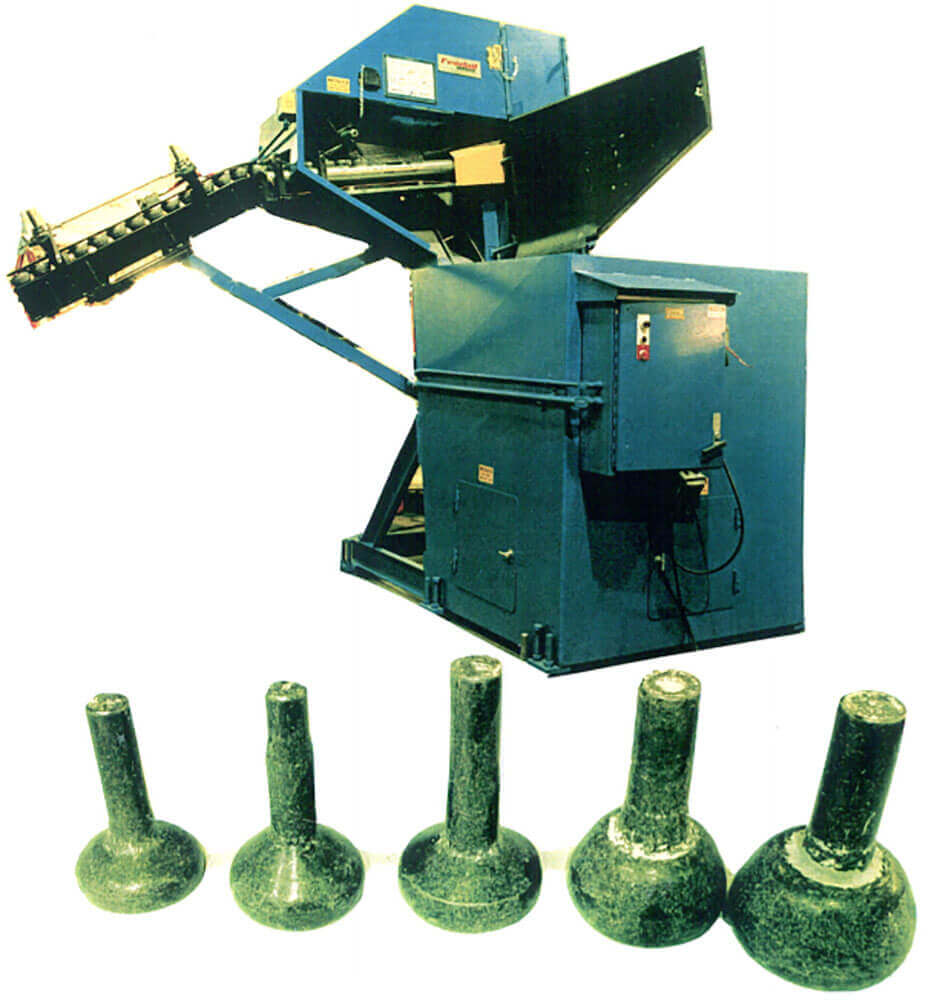

13374: PROJECT FEEDING CONSTANT VELOCITY JOINT RACES INTO PRESS

Feedall Model
Model 2500 HD

APPLICATION

Feed from a random loaded floor hopper, eleven various size outer race extrusions. The races are elevated from the hopper then discharged sliding overdriven feed rolls and oriented head up axis vertical then fed diameter to diameter through a sliding chute to the input chute of a bliss press at 62″ above the floor at a feed rate of 25 per minute.
12″ wide elevator belt, powered feed rolls and clearing wheel adjustable exit chute, 30 cubic foot hopper.
DWG. PD 9145 R2

WIDTH

12" wide elevator belt

FEED RATE

25 per minute
