CASE STUDY

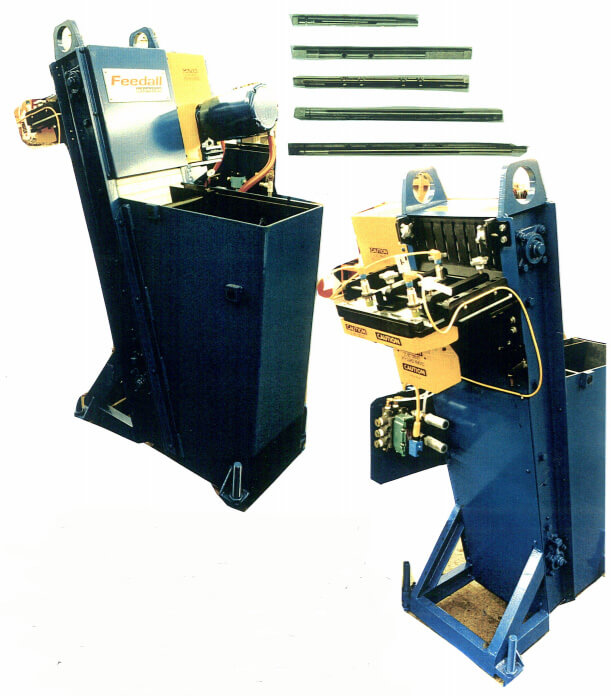

13625: PROJECT FEEDING THROTTLE BODY SHAFTS INTO GRINDER

Feedall Model
Model 1200

APPLICATION

Feed from a manually stacked hopper, throttle body shafts 9.5mm to 10mm diameter by 20 to 25mm long. The shafts are elevated from the hopper and discharged rolling to the rear of the elevator into a magazine, then escaped one at a time rolling at a height of 45″ above the floor at a rate of 12 per minute.
DWG. P 9314 R1

FEED RATE

12 per minute
