CASE STUDY

16280: PROJECT FEEDING ENGINE BULKHEAD INSERT FORGINGS INTO ROTARY TRANSFER MACHINE

Feedall Model

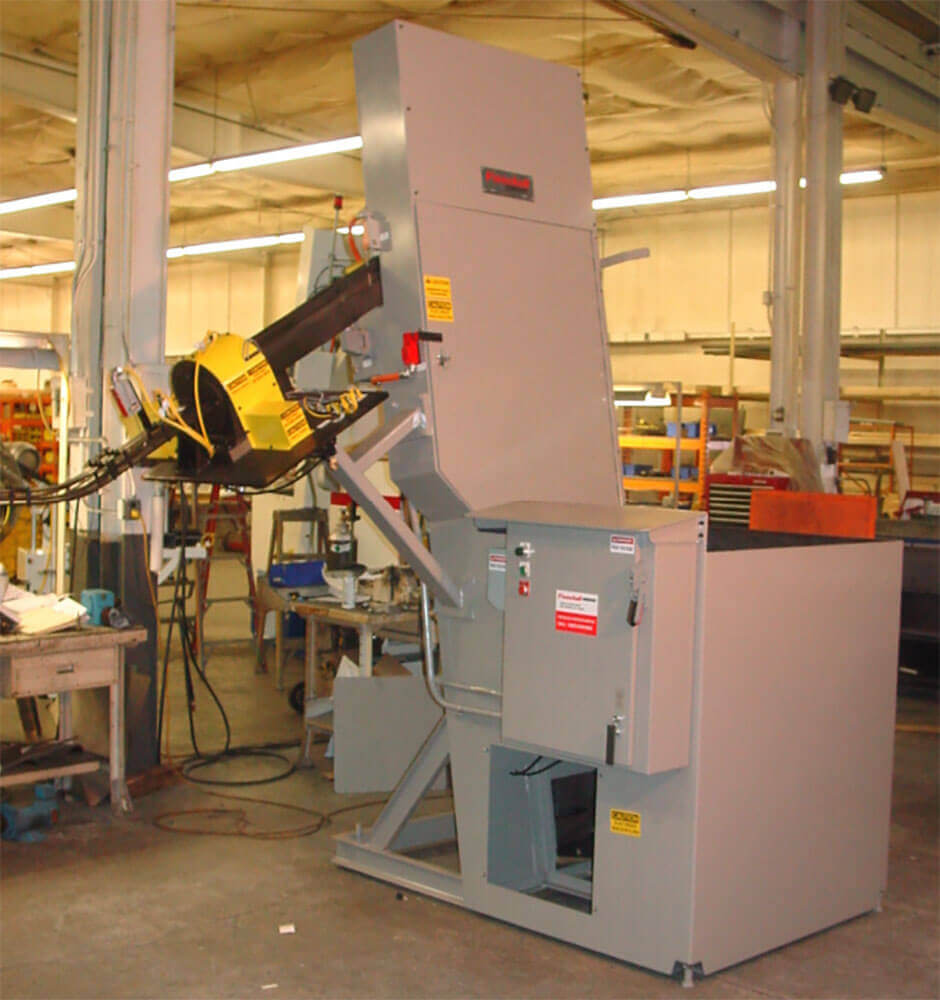

Model 2500-C Elevating Hopper Feeder

APPLICATION

Feed from a random loaded, floor mounted hopper, Engine Bulkhead Insert Forgings. Forgings are elevated out of the hopper via a cleated belt and fed in a continuous, end-to-end stream into an air-operated rotary orienting device. The orienting device will release one forging at a time laying flat with the semi-circle side oriented all the same way in a continuous end-to-end stream to a Rotary Transfer Machine.

WIDTH

12” Wide Elevating Belt

DRIVE

3/4 HP/AC Motor w/Variable Speed Drive and Overload Relief Clutch

PARTS FED (SIZE)

Engine Bulkhead Insert Forgings

FEED RATE

720 Parts/Hour (12 Parts/Minute)
