CASE STUDY

16330: PROJECT FEEDING STEERING RACKS INTO CENTERLESS GRINDER

Feedall Model

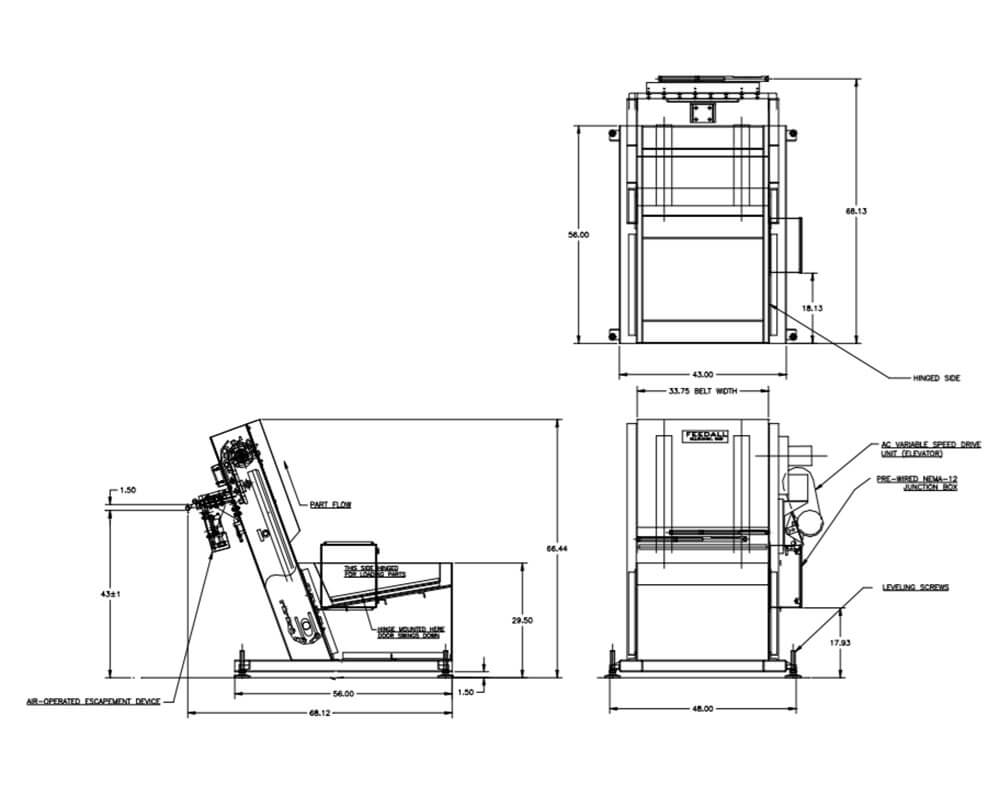

Model 2233 Elevating Hopper Feeder

APPLICATION

Feed from a random loaded, floor mounted hopper. The Steering Racks will be elevated from the hopper via a cleated belt and deposited into an accumulating chute. An air operated escapement device will load one part at a time onto customer supplied rear mounted horizontal conveyor.

WIDTH

33” Wide Elevating Belt

DRIVE

3/4 HP/AC Motor

PARTS FED (SIZE)

Steering Racks (0.986”-1.182”Ø x 23.00”-32.00” Lg.)

FEED RATE

6 Parts/Minute
