CASE STUDY

16691: PROJECT FEEDING STEEL SHAFTS INTO CENTERLESS GRINDER

Feedall Model

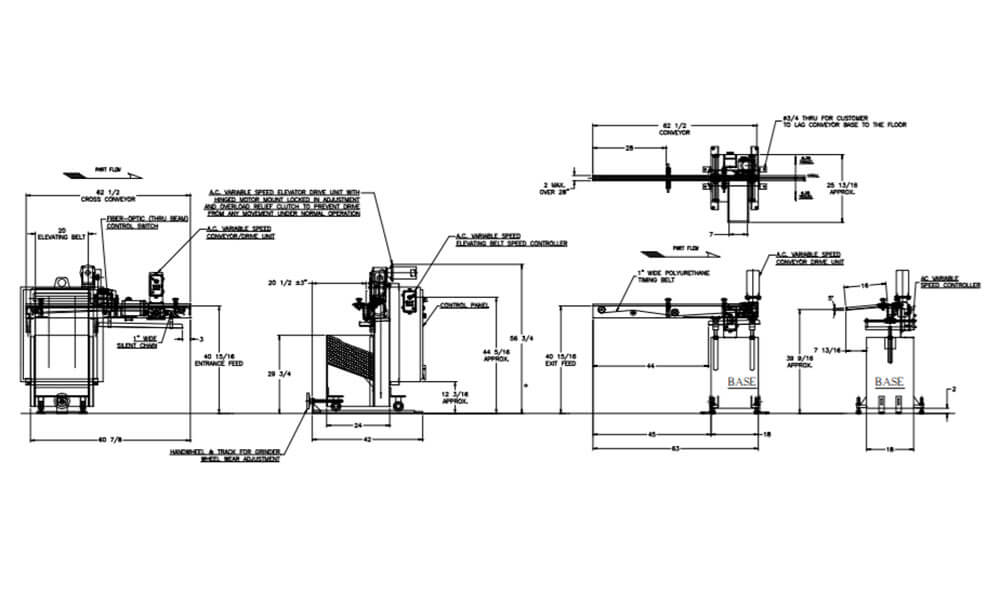

Model 2000 Elevating Hopper Feeder w/1650-1SC-62-1/2 Cross-Feed Conveyor & 1650-1PB-62-1/2 Exit Conveyor

APPLICATION

Feed from a random loaded floor mounted hopper. The Steel Shafts will be elevated from the hopper via a cleated belt and deposited onto a front-end mounted, cross-feed conveyor. The conveyor will translate the parts in a continuous, end-to-end stream to the workrest of an OKAMOTO Centerless grinder.

WIDTH

20” Wide Elevating Belt

DRIVE

1/4 HP/AC Motor w/Variable Frequency Controller

PARTS FED (SIZE)

Steel Shafts (0.25”-0.610”Ø x 1.00”-6.00” Lg.)

FEED RATE

12-15 Parts/Minute
