CASE STUDY

16702: PROJECT FEEDING STEEL BARS INTO END FINISHER

Feedall Model

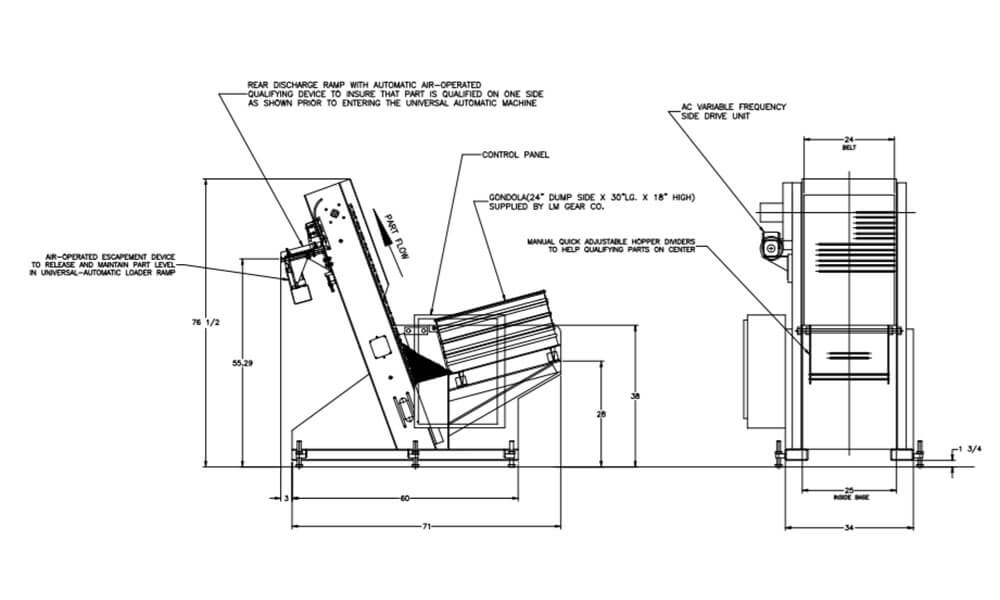

Model 2224 Elevating Hopper Feeder

APPLICATION

Feed from an automatic or hand loaded, floor-mounted hopper. Steel Bars will be elevated out of the hopper and discharged rolling, diameter-to-diameter into a load magazine on a UNIVERSAL AUTOMATIC Double End Finisher.

WIDTH

24” Wide Elevating Belt

DRIVE

1/2 HP/AC Motor

PARTS FED (SIZE)

Sheared Steel Bars (0.315”-0.425”Ø x 10.00”-20.00” Lg.)

FEED RATE

25 Parts/Minute
