CASE STUDY

16770: PROJECT FEEDING STEEL PRE-FORMS INTO PRESS

Feedall Model

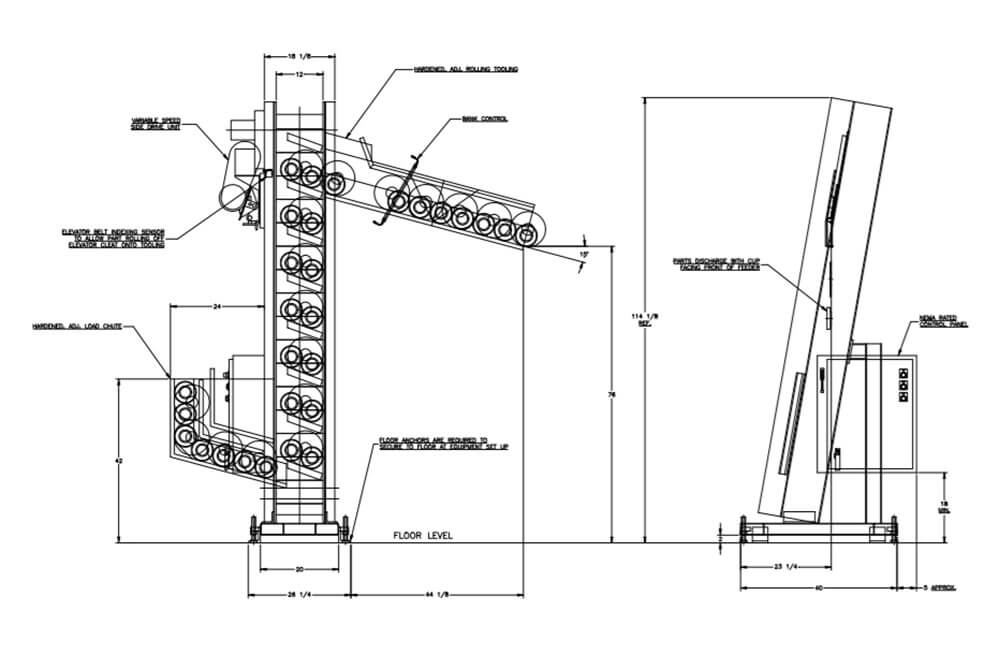

Model 2500 Elevating Hopper Feeder

APPLICATION

Feed from a random loaded, floor mounted hopper. The Pre-Forms will be manually loaded (face select oriented) into an entrance chute, which will load a cleated, indexing belt to elevate and discharge into a chute loading into a Flow Forma Machine.

WIDTH

12” Wide Elevating Belt

DRIVE

3/4 HP/AC Motor

PARTS FED (SIZE)

Steel Pre-Forms (5.63”-9.00”Ø x 0.31”-1.13” Lg.)

FEED RATE

2 Parts/Minute
