CASE STUDY

16809: PROJECT FEEDING THROTTLE SHAFTS INTO BLASTING SYSTEM

Feedall Model
Model 1775 Magazine Bar Feeder

APPLICATION

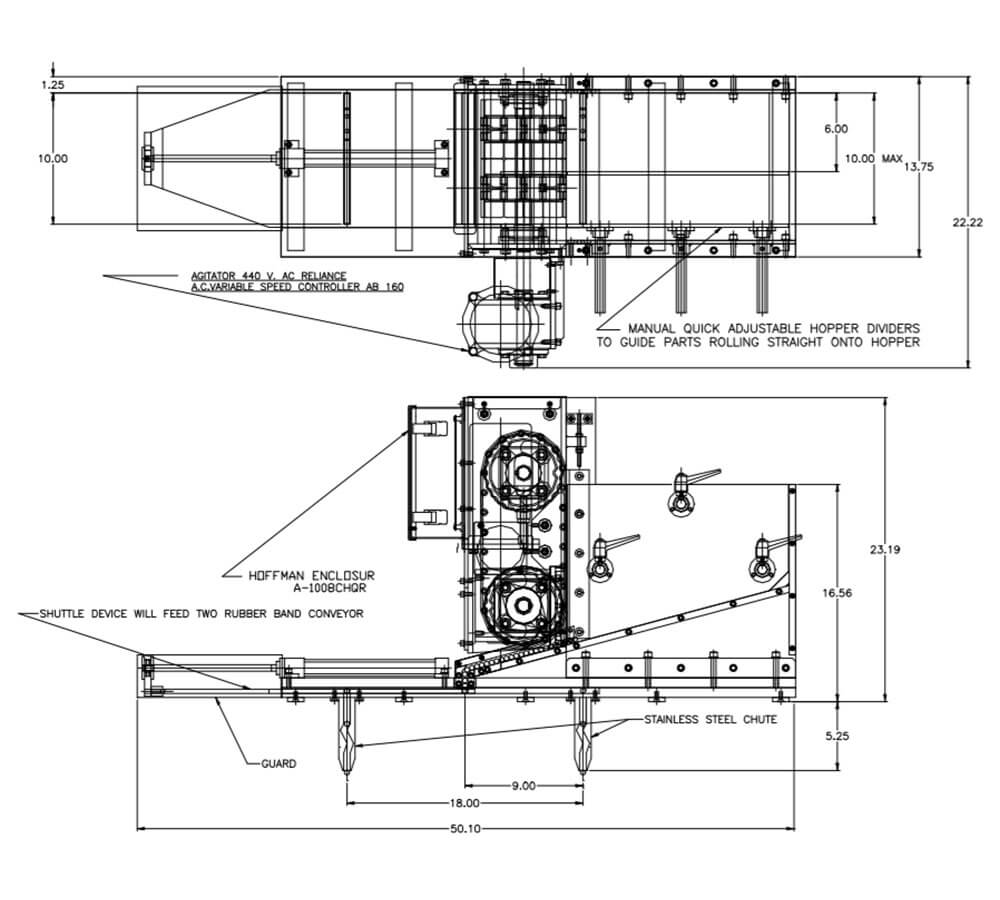

Feed from a manually loaded magazine, Throttle Body Shafts will be agitated within the magazine with a vertical driven agitator belt rotating against the shafts in the magazine to prevent bridging. The magazine track will be solid to support the full length of the shafts. The shafts will be fed in a continuous, diameter-to-diameter stream to a two-stream shuttle device. The shuttle device will release one part at a time to two separate waterfall chutes which will drop one part per chute at approximately 18 “ centers onto a customer supplied rubber band conveyor.

WIDTH

6”-10” (Adjustable)

DRIVE

1/4 HP/AC Motor w/Variable Frequency Controller

PARTS FED (SIZE)

Throttle Shafts (0.393”Ø x 6.00”-10.00” Lg.)

FEED RATE

2 Parts/11 Seconds
