CASE STUDY

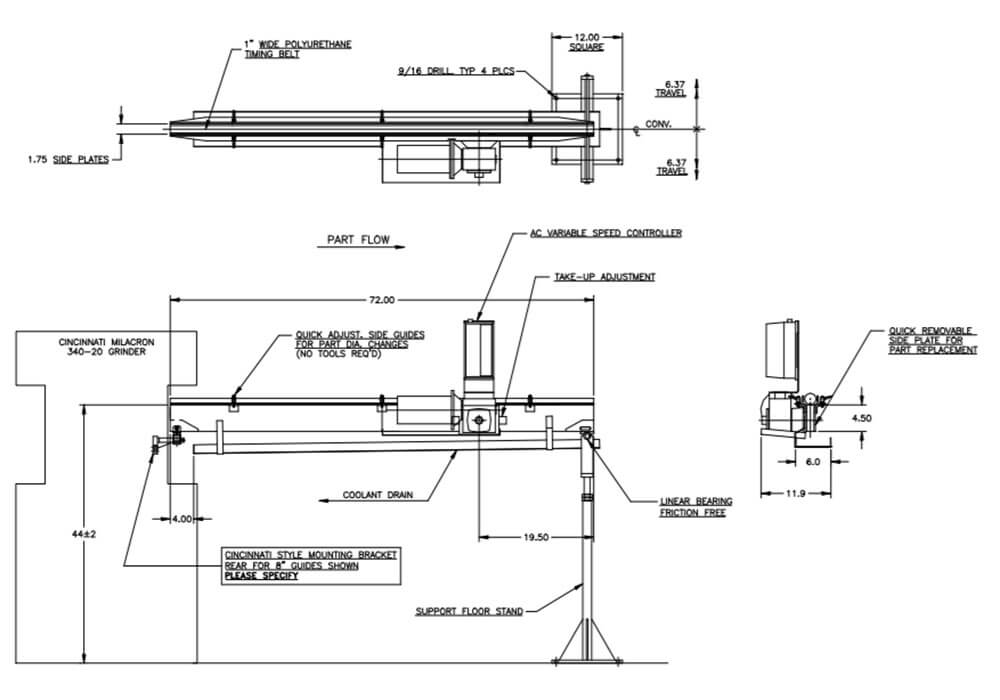

16829: PROJECT FEEDING STEEL TUBES INTO CENTERLESS GRINDER

Feedall Model
Model 1650-1PB-72 Exit Conveyor

APPLICATION

Convey Steel Tubes to the workrest of a CINCINNATI Model 340-20 Centerless Grinder.

WIDTH

1” Wide Polyurethane Timing Belt

DRIVE

1/4 HP/AC Motor w/Variable Frequency Controller

PARTS FED (SIZE)

Steel Tubes (0.75”-2.50”Ø x 4.00”-12.00” Lg.)

FEED RATE

1-50 Feet/Minute
