CASE STUDY

16861: PROJECT FEEDING SHOULDER PINS INTO CENTERLESS GRINDER

Feedall Model

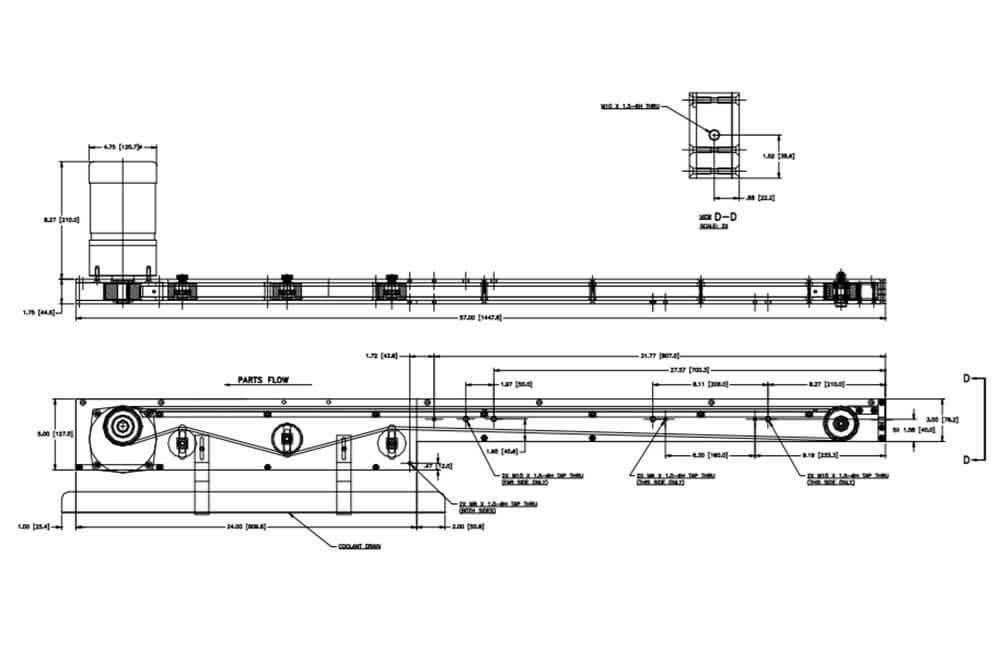

Model 1670-1PB-57 Exit Conveyor

APPLICATION

Convey Fastener Blanks from the workrest of a LANDIS Viking Centerless Grinder. The parts will exit the workrest and drop onto the conveyor. The parts will then be conveyed, end-toend, out of the grinder.

WIDTH

1” Wide Polyurethane Timing Belt

DRIVE

AC Gearmotor

PARTS FED (SIZE)

Shoulder Pins (Various Sizes)

FEED RATE

600 Inches/Minute
