16862: PROJECT FEEDING STEEL BILLETS INTO INDUCTION HEATER

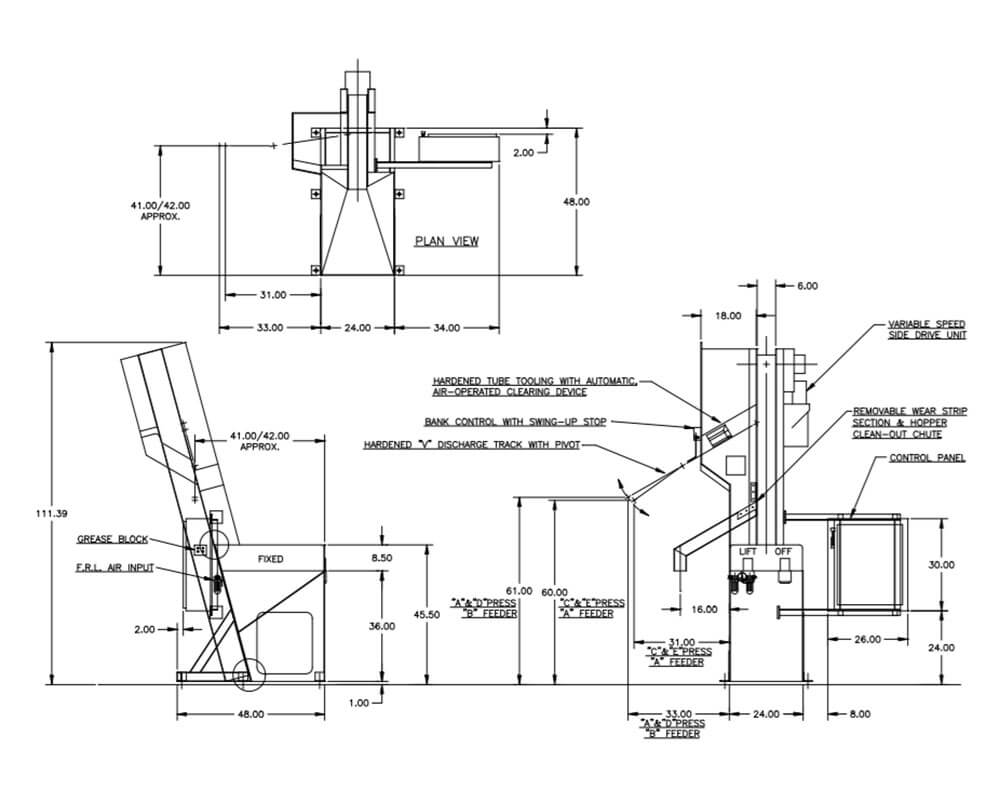

Model 2400-C Elevating Hopper Feeder
Feed from a random loaded, floor mounted hopper. Sheared Steel Billets will be elevated from the hopper via a cleated belt and discharged in a continuous rolling stream.
WIDTH6” Wide Table-Top Chain
DRIVE1/2 HP/AC Motor
PARTS FED (SIZE)Sheared Steel Billets (0.551”-0.826”Ø x 1.114”-1.362” Lg.)
FEED RATE40 Parts/Minute
