CASE STUDY

16945: PROJECT FEEDING STEEL BILLETS INTO INDUCTION HEATER

Feedall Model

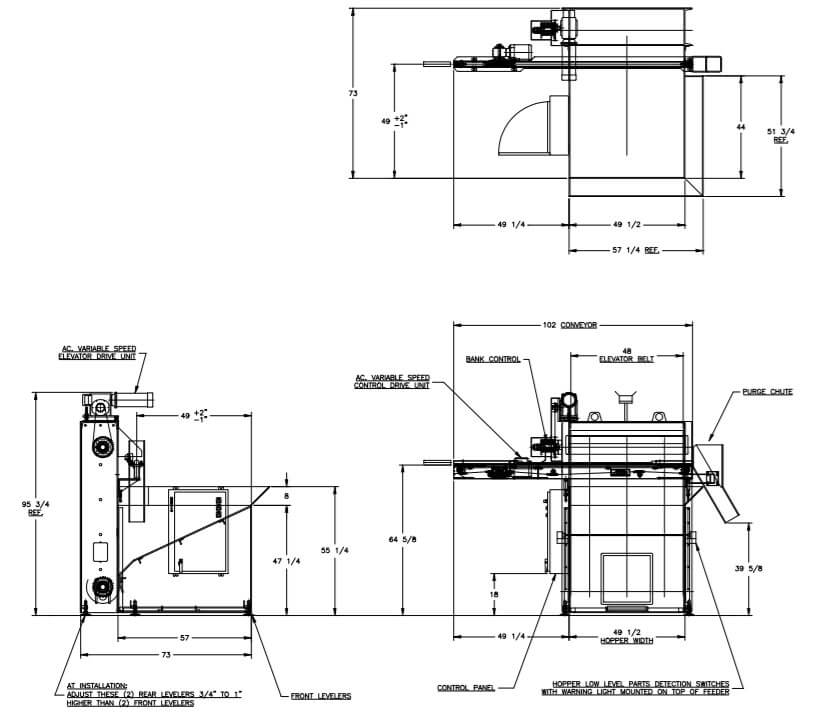

Model 4800-HD Elevating Hopper Feeder w/1650-80RC-102 Cross-Feed Conveyor

APPLICATION

Feed from a random loaded floor mounted hopper. The Steel Billets will be elevated from the hopper via cleated belt and deposited onto a cross-feed conveyor. The conveyor will translate the parts in a continuous stream to a customer supplied 20° Vibratory Track.

WIDTH

48” Wide Elevating Belt

DRIVE

1-1/2 HP/AC Motor

PARTS FED (SIZE)

Steel Billets (2.00”-3.75”Ø x 4.48”-13.00” Lg.)

FEED RATE

3-10 Parts/Minute
