CASE STUDY

17006: PROJECT FEEDING DIFFERENTIAL PINION SHAFTS INTO BROACH

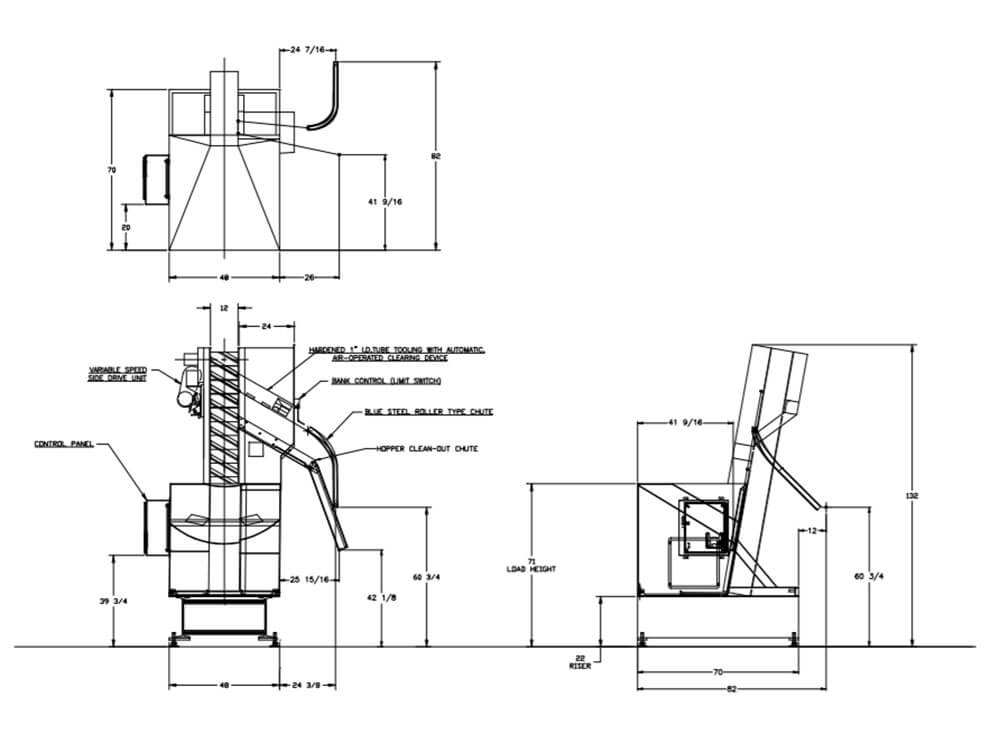

Feedall Model
Model 2500-D Elevating Hopper Feeder

APPLICATION

Feed from a random loaded, floor mounted hopper. The Differential Pinion Shafts will be elevated from the hopper via a cleated belt and discharged above the floor axis horizontal, or at a 30° angle.

WIDTH

12” Wide Elevating Belt

DRIVE

3/4 HP/AC Motor

PARTS FED (SIZE)

Differential Pinion Shafts (0.75”-1.00”Ø x 4.50”-5.00” Lg.)

FEED RATE

35 Parts/Minute
