17035: PROJECT FEEDING UNIVERSAL JOINT BEARING CUPS INTO PARTS WASHER

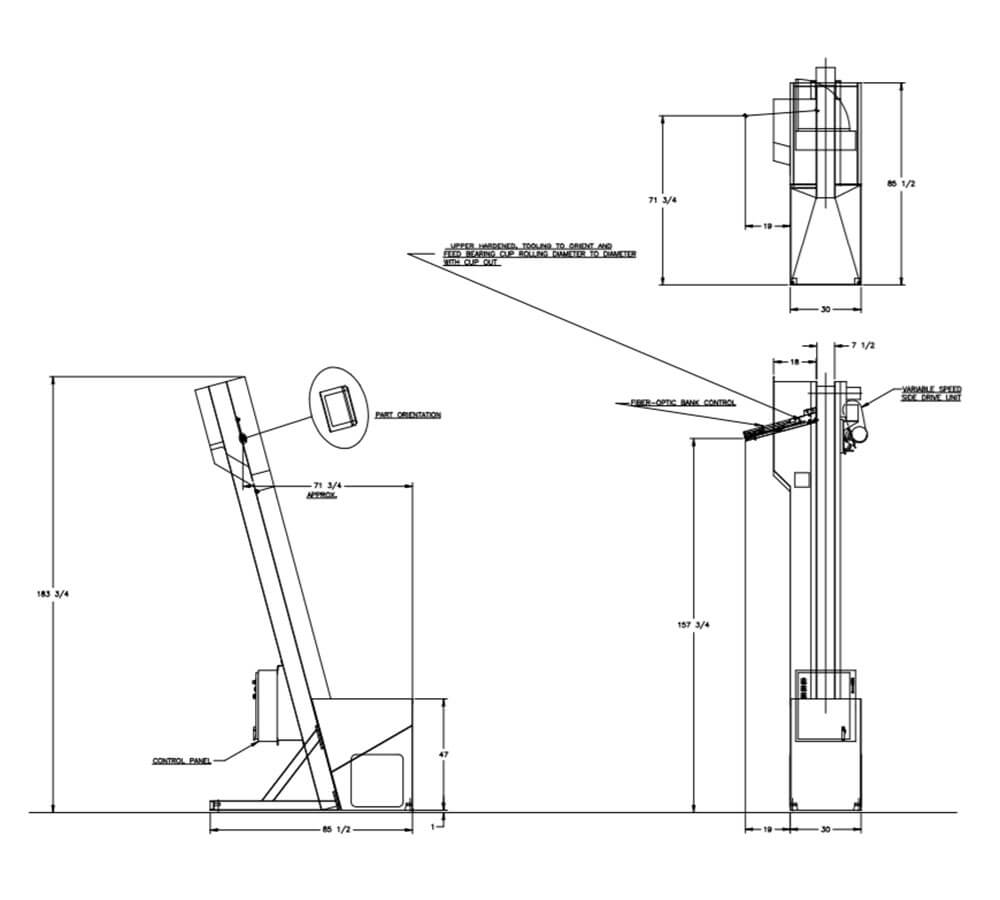

Model 2400-D Elevating Hopper Feeder
Feed from a random loaded, floor mounted hopper. The Universal Joint Bearing Cup will be elevated from the hopper via a cleated belt and discharged in a continuous rolling stream.
WIDTH7-1/2” Wide Table-Top Chain
DRIVE3/4 HP/AC Motor
PARTS FED (SIZE)Universal Joint Bearing Cups (1.37”Ø x 0.948”-1.184” Lg.)
FEED RATE60-70 Parts/Minute
