CASE STUDY

17056: PROJECT FEEDING STEEL BILLETS INTO INDUCTION HEATER

Feedall Model

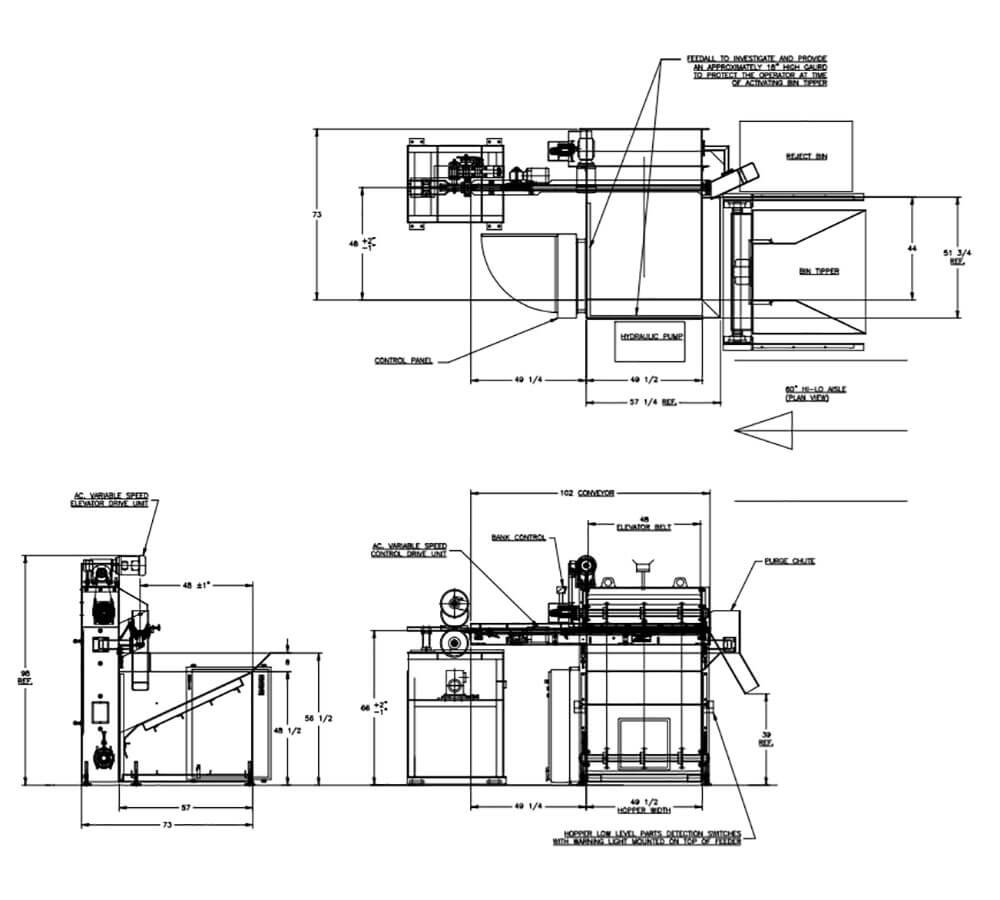

Model 4800-HD Elevating Hopper Feeder w/1650-80RC-102 Cross-Feed Conveyor

APPLICATION

Feed from a random loaded floor mounted hopper. The Saw-Cut Steel Billets will be elevated from the hopper via cleated belt and deposited onto a cross-feed conveyor. The conveyor will translate the parts in a continuous stream to an existing Pinch Roll Device.

WIDTH

48” Wide Elevating Belt

DRIVE

2 HP/AC Motor

PARTS FED (SIZE)

Saw Cut-Steel Billets (40mm-100mmØ x 8.645”-19.65” Lg.)

FEED RATE

6 Parts/Minute
