17097: PROJECT FEEDING UNIVERSAL JOINT BEARING CUPS INTO ID GRINDER

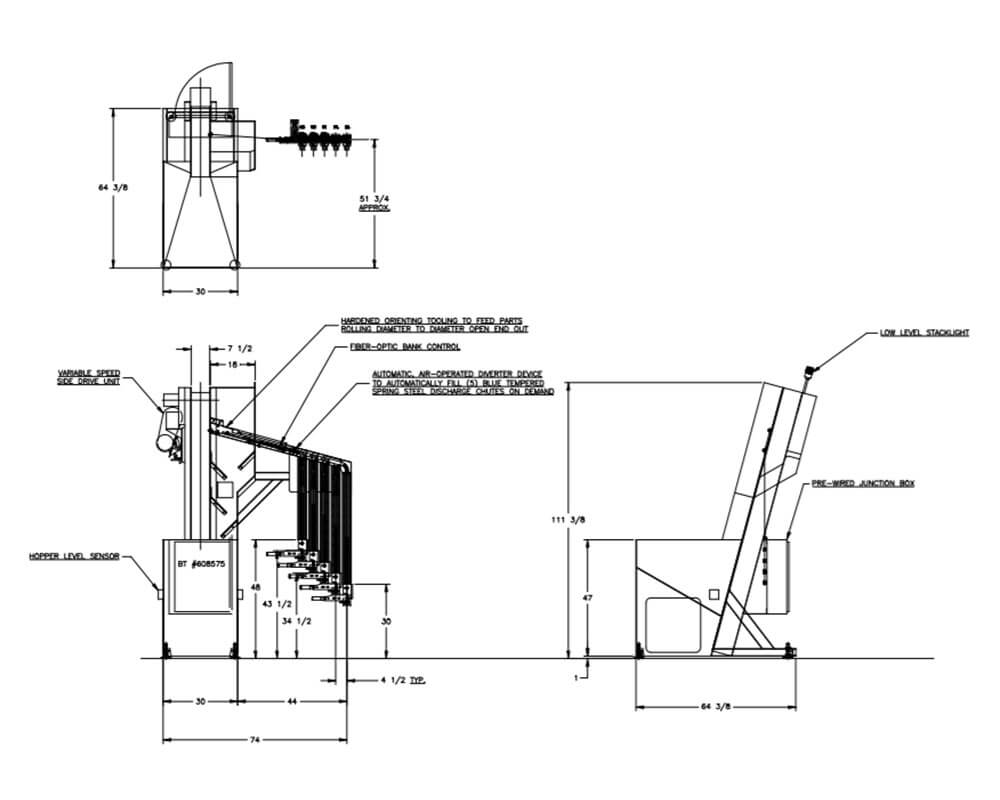

Model 2400-D Elevating Hopper Feeder
Feed from a random loaded, floor mounted hopper. The Bearing Cups will be elevated from the hopper via a cleated belt and discharged rolling, diameter-to-diameter with “cup out” into five streams.
WIDTH7-1/2” Wide Table-Top Chain
DRIVE3/4 HP/AC Motor
PARTS FED (SIZE)Universal Joint Bearing Cups (1.188”Ø x 0.948” Lg.)
FEED RATE12 Parts/Minute/Chute
