CASE STUDY

17115: PROJECT FEEDING STEERING RACKS INTO STRAIGHTENER

Feedall Model
Model 2233 Elevating Hopper Feeder

APPLICATION

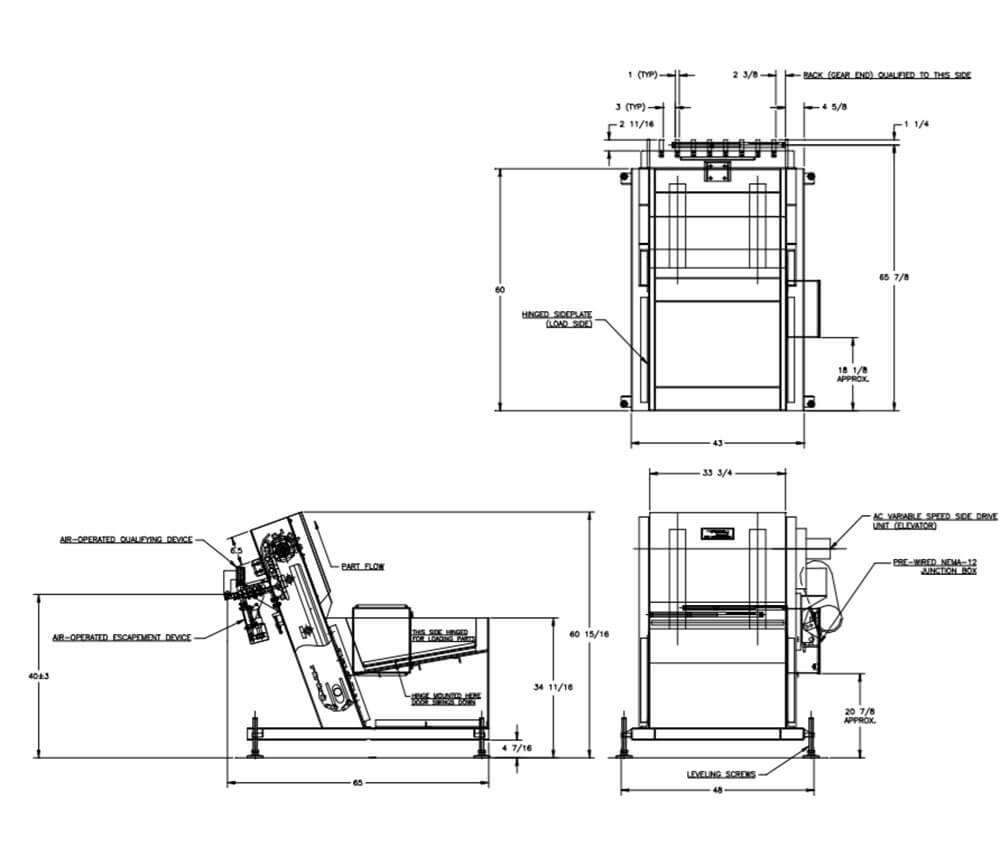

Feed from a manually loaded, floor mounted hopper. The Steering Racks will be elevated from the hopper via a cleated belt and carried over the top of the elevator and deposited onto a rear mounted, accumulation ramp in a continuous, diameter-to-diameter stream. An airoperated escapement device will load one part at a time into rear mounted, V-Nest for customer pick off via lift and carry transfer.

WIDTH

33” Wide Elevating Belt

DRIVE

3/4 HP/AC Motor

PARTS FED (SIZE)

Steering Racks (0.98”-1.26”Ø x 23.68”-29.79” Lg.)

FEED RATE

3 Parts/Minute
