CASE STUDY

17213-17214: PROJECT FEEDING STEEL BILLETS INTO INDUCTION HEATER

Feedall Model

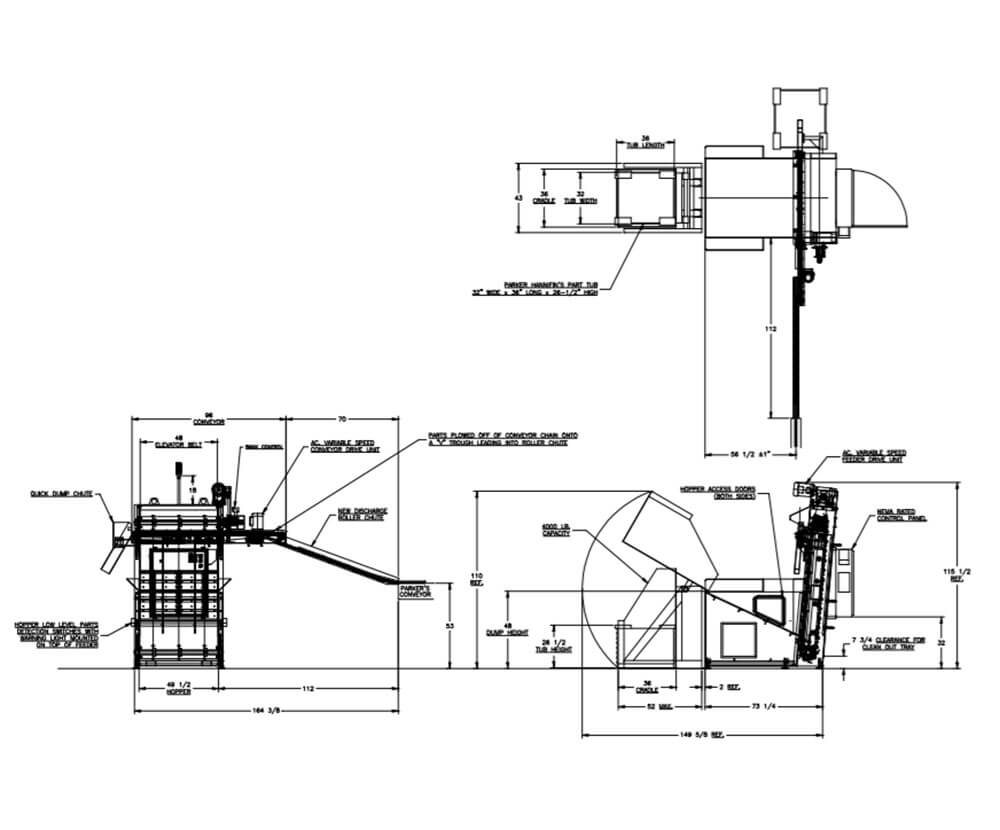

Model 4800 Elevating Hopper Feeder w/1650-80RC-96 Cross-Feed Conveyor & 4,000# Hydraulic Tub Dumper

APPLICATION

Feed from a random loaded floor mounted hopper. The Sheared Hot Rolled Steel will be elevated from the hopper via cleated belt and deposited onto a cross-feed conveyor. The conveyor will translate the parts in a continuous stream onto an input conveyor of an induction heater.

WIDTH

48” Wide Elevating Belt

DRIVE

1-1/2 HP/AC Motor

PARTS FED (SIZE)

Sheared Hot Rolled Steel Bars (0.63”-1.25”Ø x 12.00”-16.50” Lg.)

FEED RATE

8 Parts/Minute
