CASE STUDY

17263: PROJECT FEEDING STEEL BARS INTO CENTERLESS GRINDER

Feedall Model

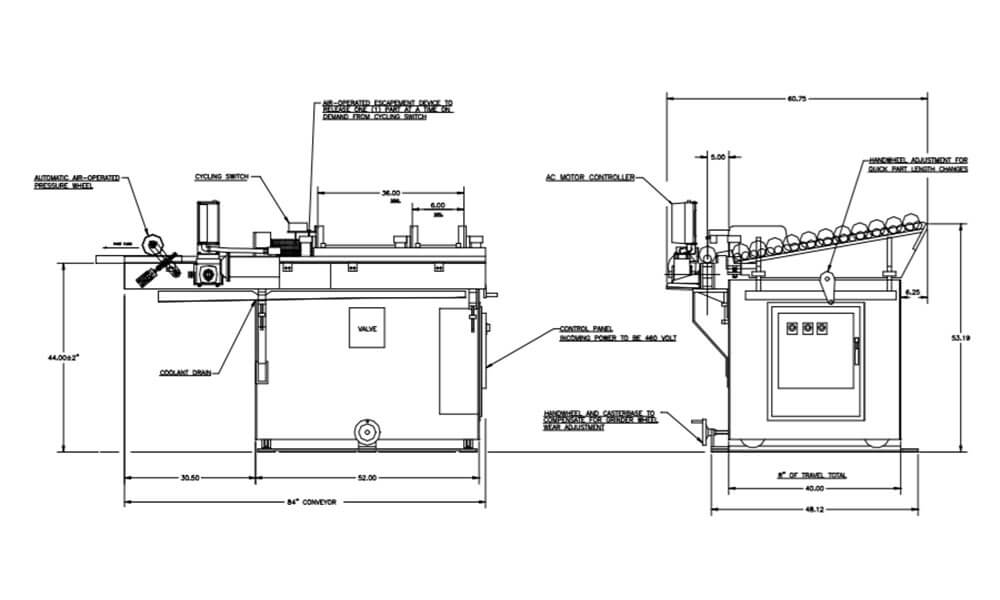

Model 1700-436 Heavy-Duty Magazine Bar Feeder w/1650HD-2SC-84 Cross-Feed Conveyor

APPLICATION

Feed from a manually loaded, floor mounted magazine, Steel Bars. Bars will be fed in a continuous stream and escaped one at a time rolling onto a model 1650 conveyor feeding a continuous stream to customer’s centerless grinder.

WIDTH

6”-36” (Adjustable)

DRIVE

1/2 HP/AC Motor

PARTS FED (SIZE)

Steel Bars (1.00”-4.00”Ø x 12.00”-36.00” Lg.)

FEED RATE

1-50 feet/minute
