CASE STUDY

17588: PROJECT FEEDING PIPE FITTINGS INTO VIBRATORY BOWL

Feedall Model

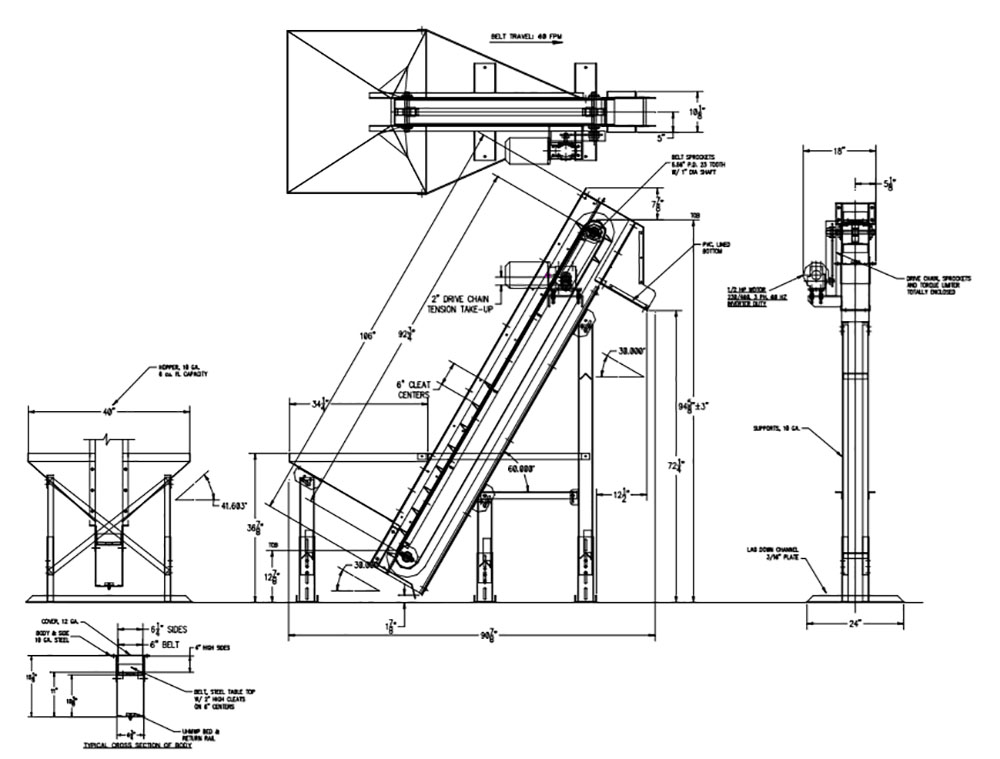

Model 0600 Elevating Bulk Hopper Feeder

APPLICATION

Feed from a random loaded floor mounted hopper. Parts will be elevated from hopper via a cleated belt and discharged randomly into a customer supplied vibratory bowl.

WIDTH

6” Wide Table-Top Chain Elevating Belt

DRIVE

1/2 HP/AC Motor

PARTS FED (SIZE)

Forged Brass Pipe Fittings (Part Matrix)

FEED RATE

15 Parts/Minute
