CASE STUDY

17660: PROJECT FEEDING STEEL BILLETS INTO INDUCTION HEATER

Feedall Model
Model 4800 Elevating Hopper Feeder w/1640-4TTC-108 Cross-Feed Conveyor, 6,000# Vibratory Metering Hopper & 180º Roll-Over Tub Dumper

APPLICATION

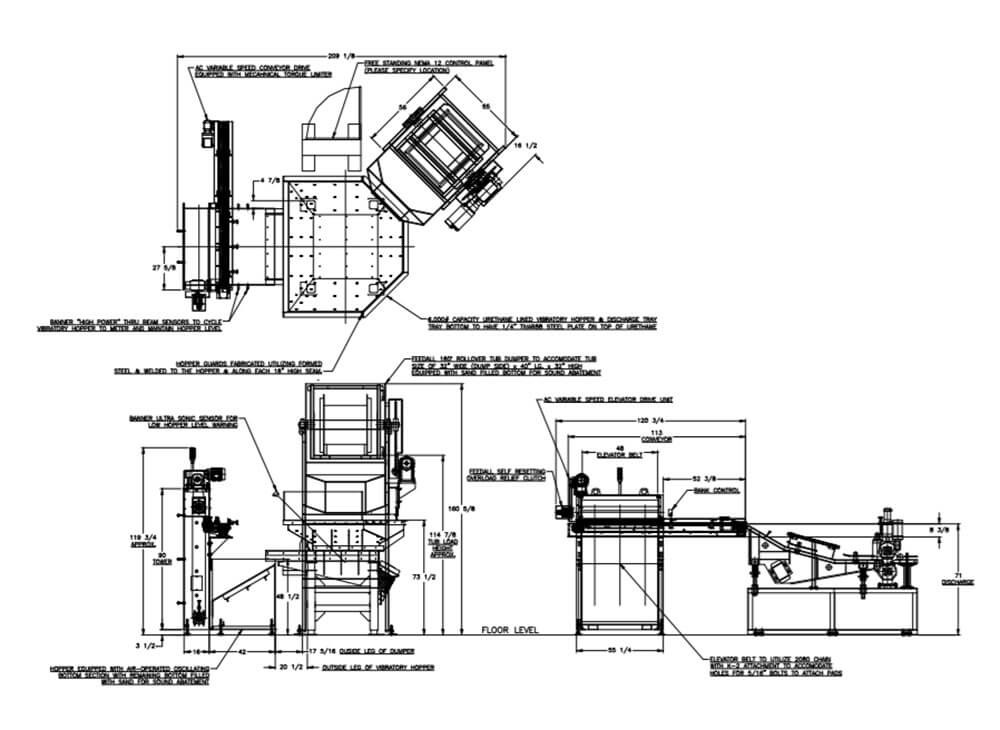

Feed from a random loaded, floor mounted hopper. The Steel Billets will be dumped from a tub (40” long x 32” wide-dump side x 40” tall) into a urethane lined vibratory metering hopper. Upon a signal these parts will then be metered into a vertical elevating hopper feeder (MODEL 4800) designed specifically to ONLY pick up your parts in the proper orientation WITH NO FALLBACK. Once loaded onto the belt the parts will be elevated then swept off the cleats onto a horizontal cross feed conveyor which will feed parts in a continuous end to end stream to a VIBRATORY track.

WIDTH

48” Wide Elevating Belt

DRIVE

2 HP/AC Motor

PARTS FED (SIZE)

Steel Billets (2.125”-4.00”Ø x 6.00”-20.00” Lg.)

FEED RATE

10 Parts/Minute
