CASE STUDY

17675: PROJECT FEEDING HEX NUTS INTO BULK ORIENTER

Feedall Model

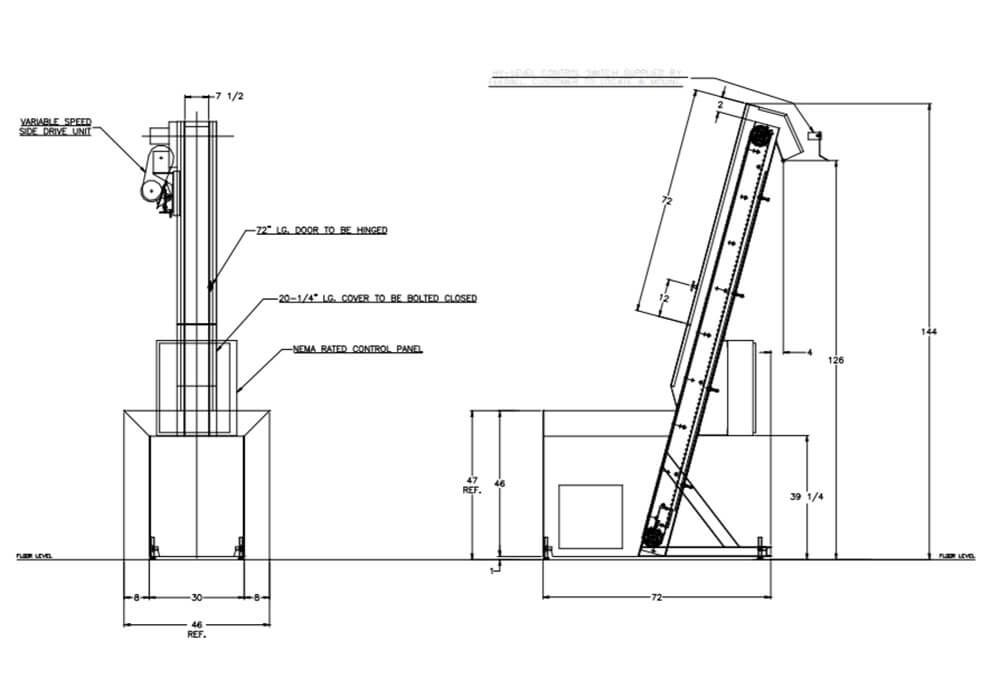

Model 2400-D Elevating Bulk Hopper Feeder

APPLICATION

Feed from a random loaded, floor mounted hopper. The parts will be elevated from the hopper via a cleated belt and discharged over the top and out the backside with random orientation.

WIDTH

7-1/2” Wide Table Top Chain

DRIVE

1/2 HP/AC Motor

PARTS FED (SIZE)

Finished Hex Nuts (.875” to 1.25”)

FEED RATE

800 to 1,250 Parts/Minute
