CASE STUDY

17690=17691: PROJECT FEEDING SUN GEARS INTO MACHINING CENTER

Feedall Model

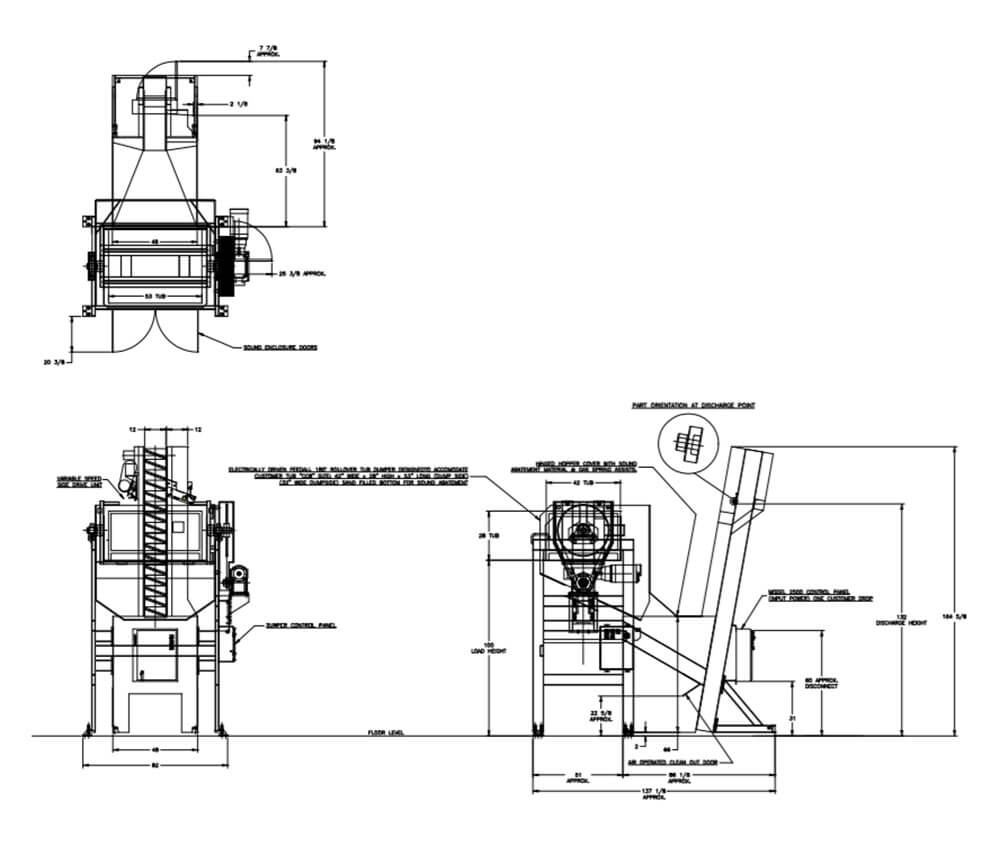

Model 2500-D Elevating Hopper Feeder w/180º Roll-Over Dumper

APPLICATION

Feed from a random loaded, floor mounted hopper. The blanks will be elevated from the hopper via a cleated belt and fed oriented in a continuous rolling stream and discharged into existing blue steel chutes.

WIDTH

12” Wide Elevating Belt

DRIVE

3/4 HP/AC Motor

PARTS FED (SIZE)

Rear Sun Gear Blanks (2.50”Ø x 1.63” Lg.)

FEED RATE

12 Parts/Minute
