CASE STUDY

17732: PROJECT FEEDING CARBIDE BLANKS INTO CENTERLESS GRINDER

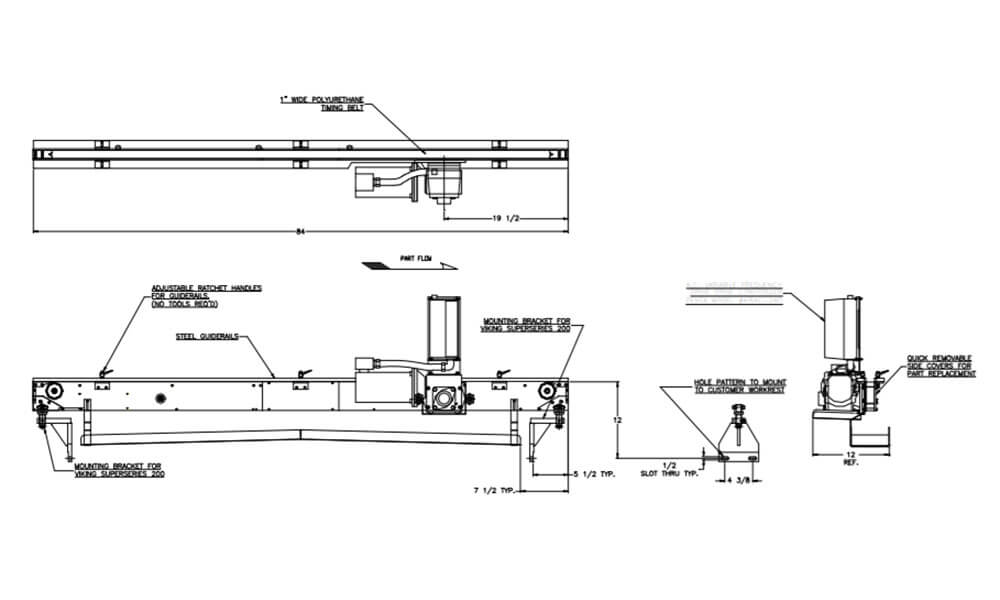

Feedall Model
Model 1650-1PB-84 Entrance Conveyor

APPLICATION

Convey Carbide Blanks from the workrest of a CINCINNATI Model 340-20 Centerless Grinder to the workrest of a LANDIS VIKING Centerless Grinder.

WIDTH

1” Wide Polyurethane Timing Belt

DRIVE

1/4 HP/AC Motor w/Variable Frequency Controller

PARTS FED (SIZE)

Carbide Blanks (0.19”-1.25”Ø x 1.00”-6.00” Lg.)

FEED RATE

1-50 feet/minute
