CASE STUDY

17827: PROJECT FEEDING STEEL BARS INTO CENTERLESS GRINDER

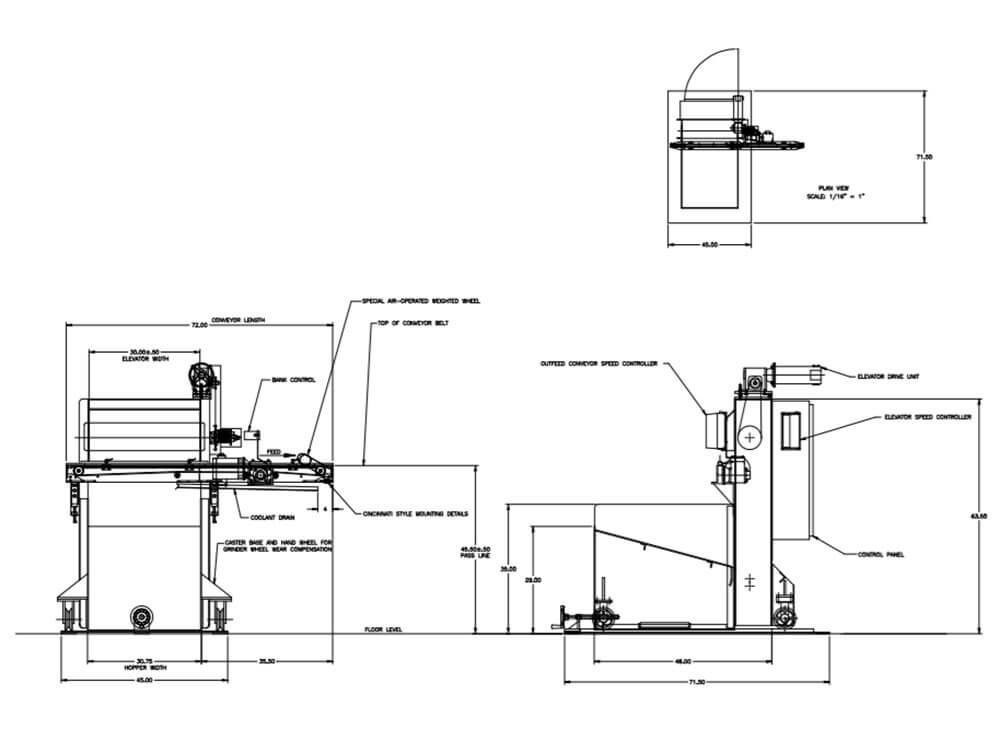

Feedall Model
Model 3000 Elevating Hopper Feeder w/1650-1SC-72 Cross-Feed Conveyor

APPLICATION

Feed from a manually loaded floor mounted hopper, Steel Bars. The Bars will be elevated from the hopper via cleated belt and deposited onto a front mounted, Cross-Feed Conveyor. The Conveyor will translate the parts in a continuous, end-to-end stream to the workrest of a Centerless Grinder.

WIDTH

30” Wide Elevating Belt

DRIVE

3/4 HP/AC Motor w/Variable Frequency Controller and Overload Relief Clutch
1/4 HP/AC Motor w/Variable Frequency Controller

PARTS FED (SIZE)

Steel Bars (0.50”-0.75”Ø x 10”-24” Lg.)

FEED RATE

9-20 Parts/Minute
