CASE STUDY
17838: PROJECT FEEDING BEARING RACES INTO CENTERLESS GRINDER

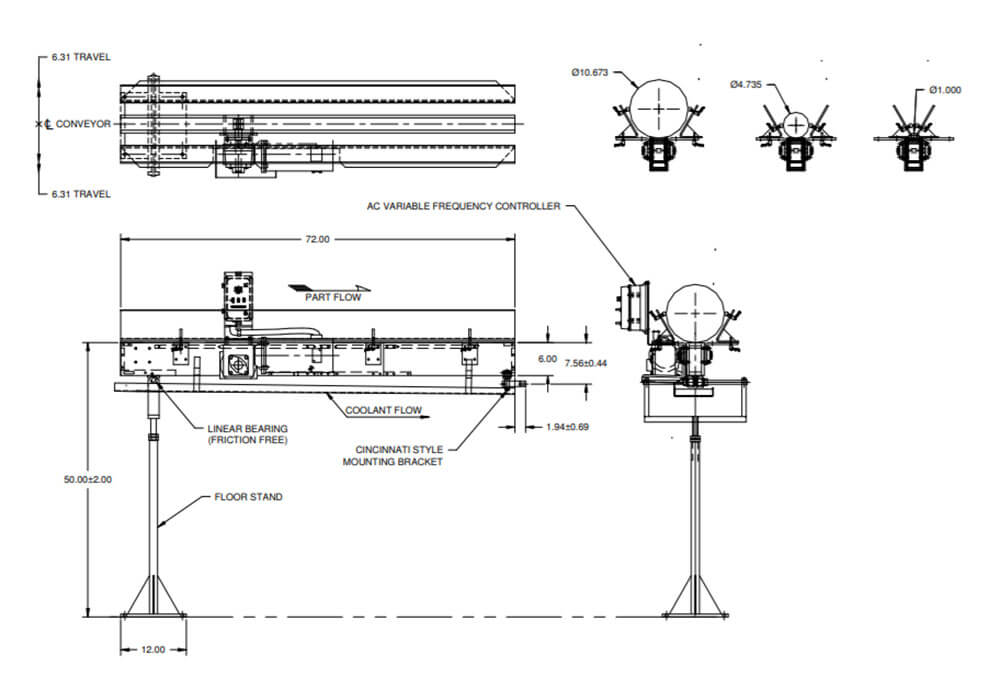

Feedall Model
Model 1650-HD Entrance Conveyor
APPLICATION
Convey Bearing Races to the workrest of a Centerless Grinder.
WIDTH
2” Wide Silent ChainDRIVE
1/2 HP/AC Motor w/Variable Frequency ControllerPARTS FED (SIZE)
Bearing Races (1.000”-10.673”Ø x 1.225”-3.161” Lg.)FEED RATE
1-50 Feet/Minute
