CASE STUDY

17993: PROJECT HYDRAULIC HOSE COUPLINGS INTO WASHER BASKET/WEIGHT SCALE

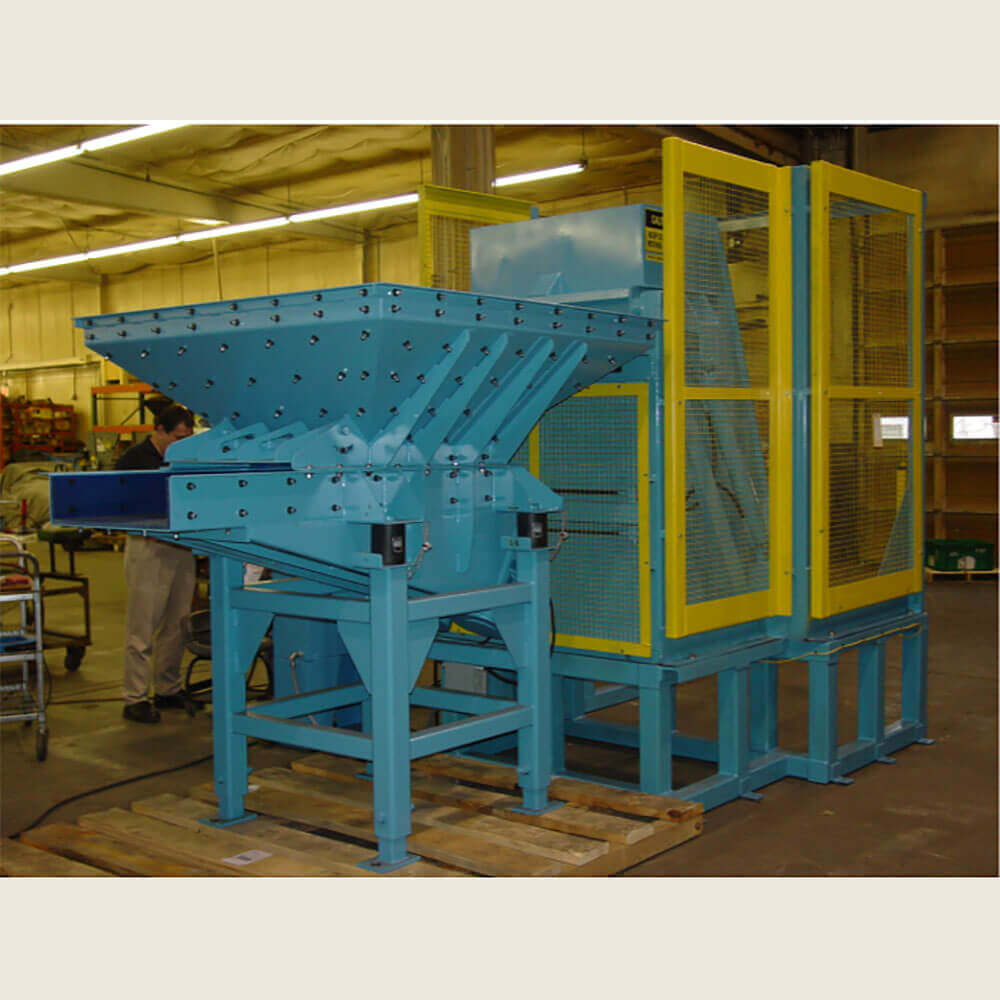

Feedall Model
Model MDS-3000 Metering Dump System

APPLICATION

Feed from a random loaded, floor mounted hopper, various Hydraulic Hose Couplings and Stems. The part tubs will be loaded into a hydraulic tub dumper and dumped into a vibratory metering hopper. The operator will manually meter parts out of the vibratory hopper into a washer basket on a weight scale until the proper weight is met by utilizing a start/stop button. The discharge height of the vibratory hopper is 47” above the floor.

WIDTH

38” wide x 32-1/2” long x 27” high & 38” wide x 32-1/2” long x 39” high

DRIVE

3 HP Motor with 440/3/60 volt-phase-cycle
(2)1-1/2 HP Motor Vibrators with 460/3/60 volt-phase-cycle

PARTS FED (SIZE)

Various Hydraulic Hose Couplings
