CASE STUDY

18019: PROJECT FEEDING STEEL TUBES INTO ROBOT

Feedall Model

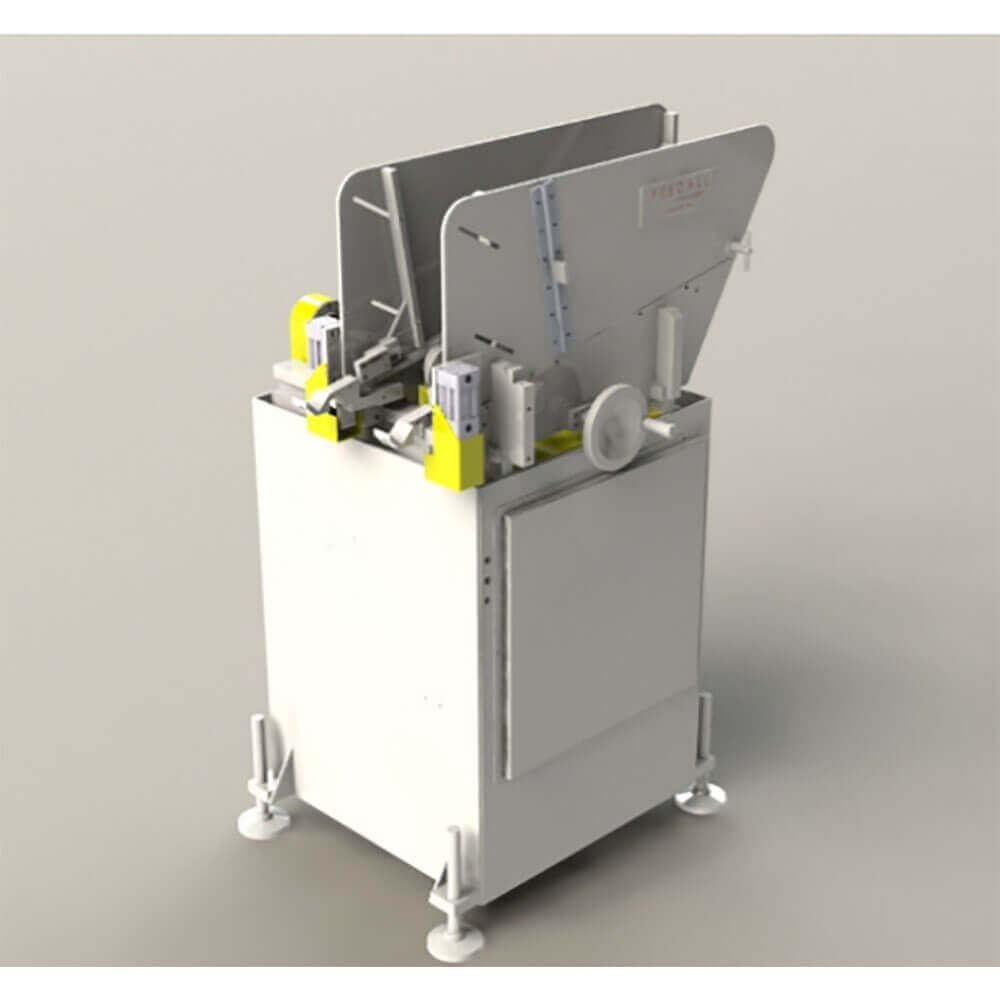

Model 1700 Magazine Bar Feeder

APPLICATION

Feed from a manually loaded, floor mounted magazine, Steel Tubes. Tubes will be fed in a continuous, diameter-to-diameter stream and escaped, one at a time onto a “V” nest for robot pick-off at 43.52” above the floor .The feed rate is 6 parts/minute.

DRIVE

1/3 HP Motor with 230/3/60 volt-phase-cycle

PARTS FED (SIZE)

Steel Tubes (0.544”Ø x 9.60” Lg.)

FEED RATE

6 Parts/Minute
