CASE STUDY

18033: PROJECT FEEDING STEEL BUSHINGS INTO CNC LATHE

Feedall Model

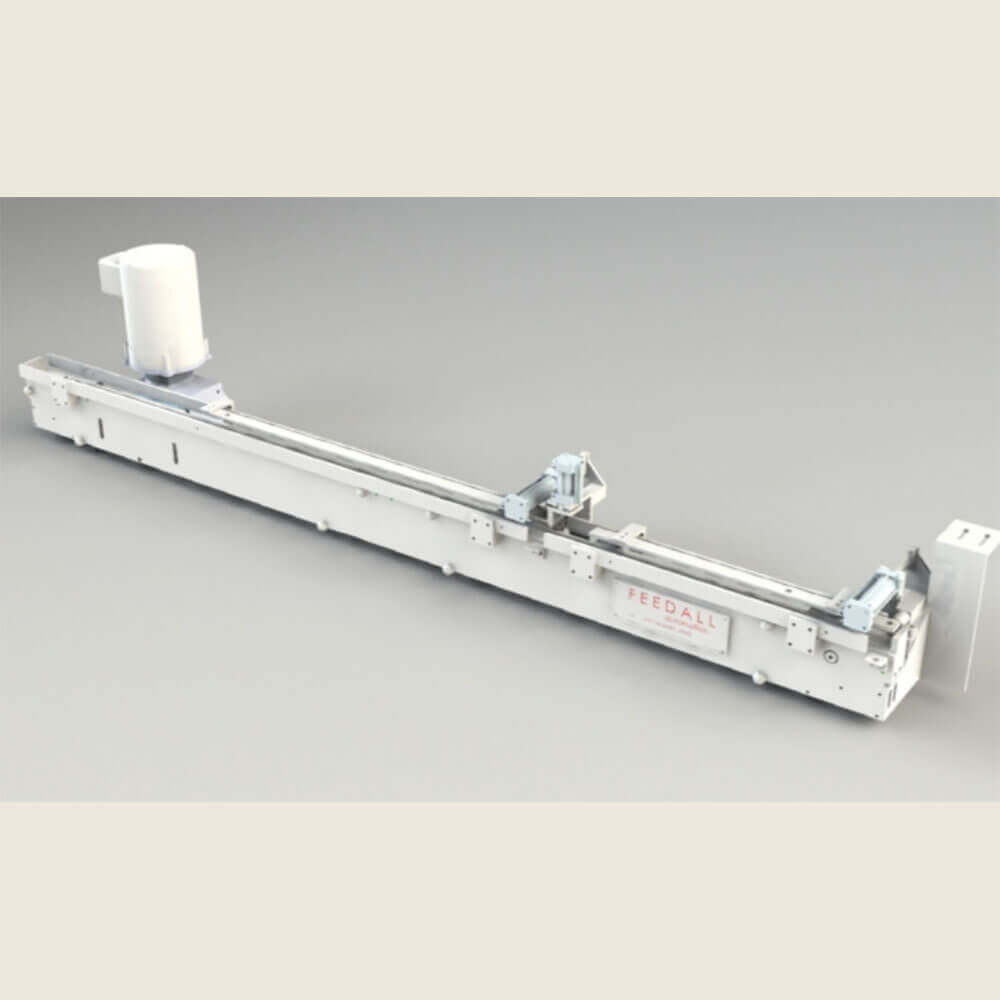

Model 1650-1PB-72 Intermediate Conveyor

APPLICATION

Accept Steel Bushings from the previous operation via a robot and convey them in a continuous, diameter-to-diameter stream to an air-operated pusher device. An air-operated escapement device will release additional bushings on demand from a level switch to another air-operated pusher device. The pusher devices will discharge two bushings on a prescribed center-to-center distance for gantry pick-off loading an OKUMA Dual Spindle CNC Lathe.

WIDTH

1” Wide Polyurethane Belt

DRIVE

1/4 HP/AC Motor w/Variable Frequency Controller

PARTS FED (SIZE)

Steel Bushings (1.026”Ø x 2.461” Lg.)

FEED RATE

1-50 feet/minute
