CASE STUDY

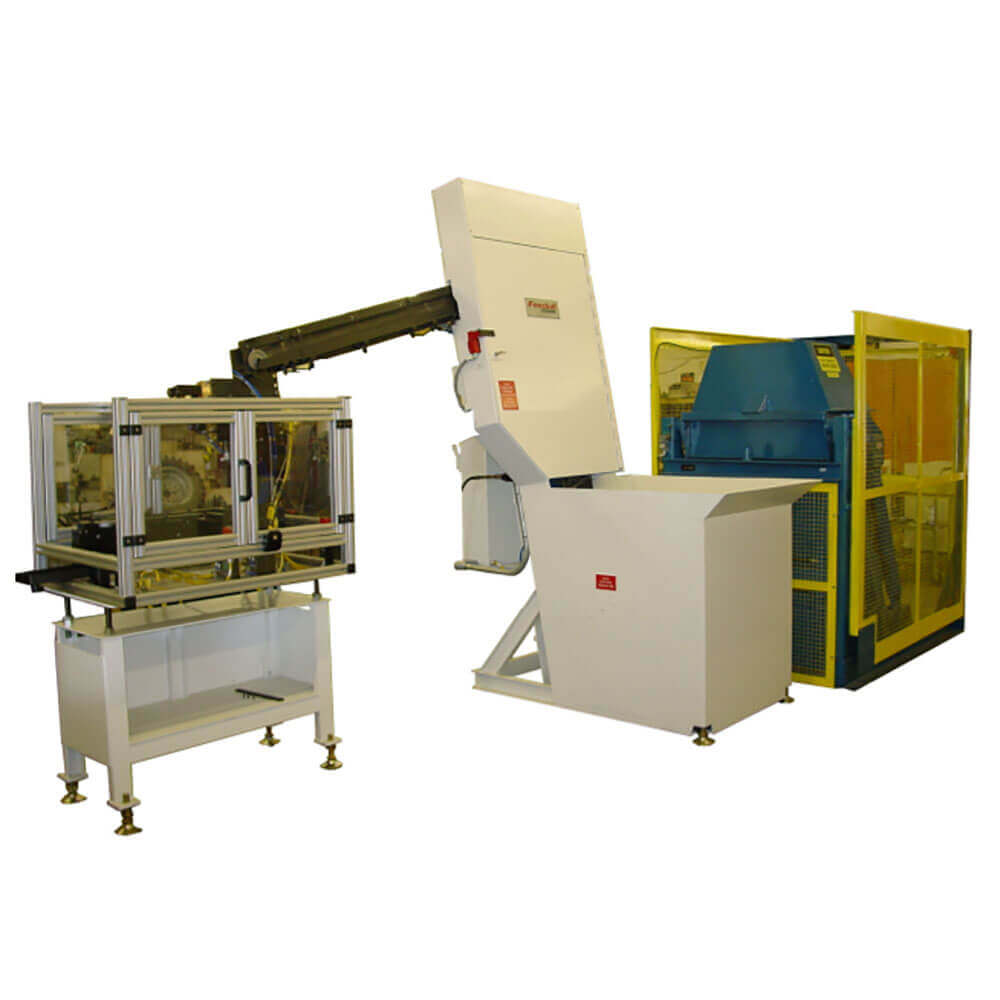

18052: PROJECT FEEDING FORGED GEAR BLANKS INTO CNC MACHINING CENTER

Feedall Model
Model 2500-C Elevating Hopper Feeder

APPLICATION

Feed from a random loaded, floor mounted hopper, Forged Gear Blanks. Blanks will be elevated from hopper via a cleated belt and oriented with face select orientation in a continuous, diameter-to-diameter stream. Blanks will roll into an air-operated escapement device that will release one blank at a time onto a horizontal conveyor with hub down for gantry pick-off by an OKUMA Dual Spindle CNC Lathe.

WIDTH

12” Wide Elevating Belt with Welded, Hardened Steel Cleats

DRIVE

3/4 HP/AC Motor with Variable Speed Tilt Drive & Overload Relief Clutch
1/4 HP/AC Motor with Variable Frequency Controller

PARTS FED (SIZE)

Forged Gear Blanks

FEED RATE

80 Parts/Hour
