CASE STUDY

18078: PROJECT FEEDING CROSSHEAD PINS INTO CENTERLESS GRINDER

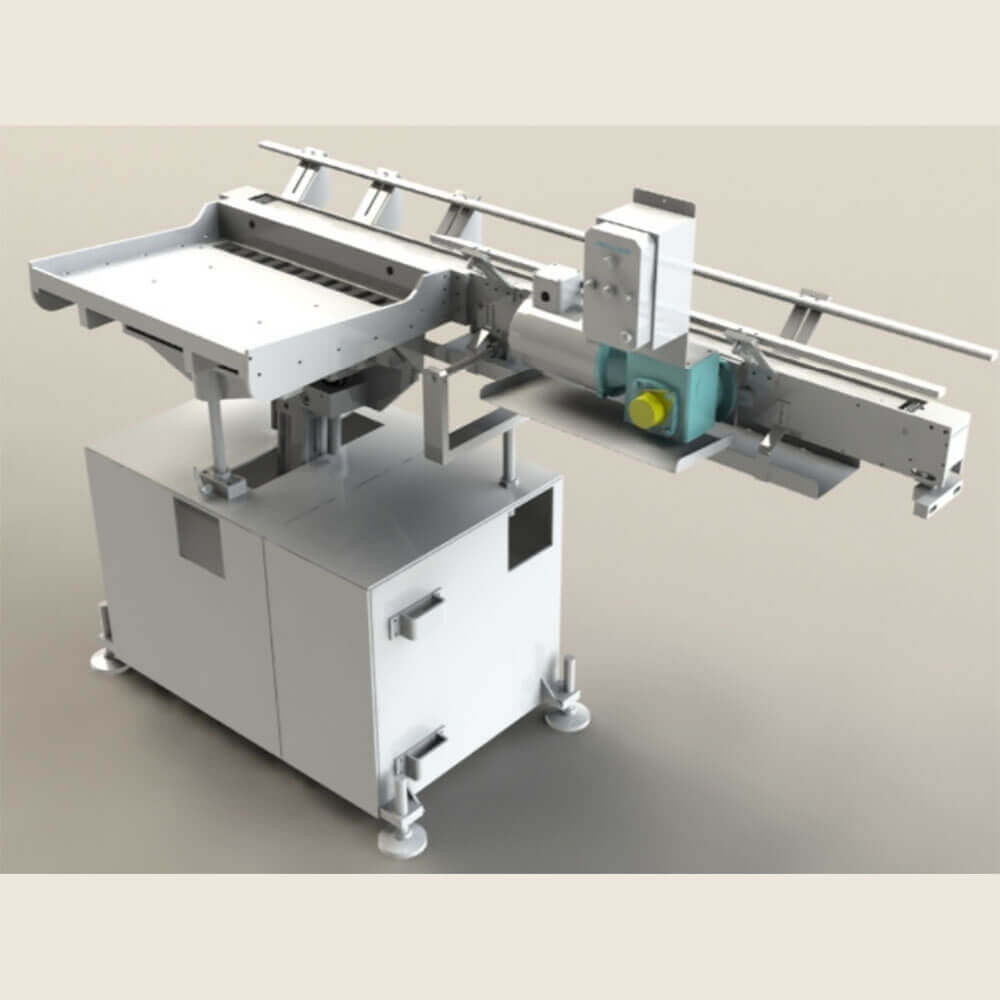

Feedall Model
Model 1650-2SC-72 Entrance Conveyor

APPLICATION

Feed from a manually loaded, single row magazine Crosshead Pins. Pins will be escaped, one row at a time, onto cross-feed conveyor and conveyed to the workrest of a CINCINNATI Model 360-20 DE Centerless Grinder.

WIDTH

1” Wide Silent Chain Belt

DRIVE

1/2 HP/AC Motor w/Variable Frequency Controller

PARTS FED (SIZE)

Crosshead Pins (2.00”-6.25”Ø x 4.0”-12.19” Lg.)

FEED RATE

1-50 feet/minute
