CASE STUDY

9262: PROJECT FEEDING CONSTANT VELOCITY JOINT RACES INTO CNC TURNING CENTER

Feedall Model
Model 2500 HD

APPLICATION

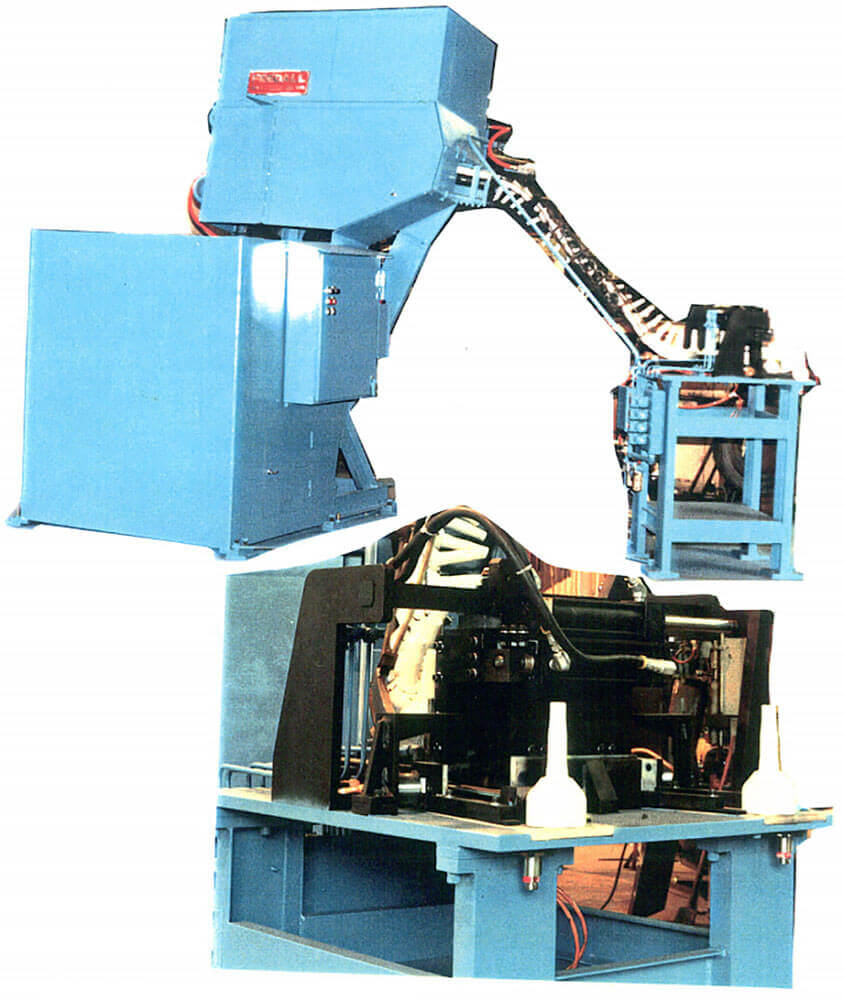

Feed from a random loaded floor mounted hopper auto cv outer races, various sizes. The races are elevated then oriented stem down hanging vertical DIA. to DIA. and fed into a 180 degree twisted chute and discharged stem up to a shuttle device distributing one part in each of two positions 18″ apart to be advanced by individual pneumatic transfers to robot pick up stations at 45″ above the floor at a rate of 6 to 10 parts per minute feeding a CNC turning cell.
12″ wide elevator belt, 25 CU. FT. Hopper.
PD 6091 & 6092

WIDTH

12" wide elevator belt

FEED RATE

6 to 10 parts per minute
