CASE STUDY

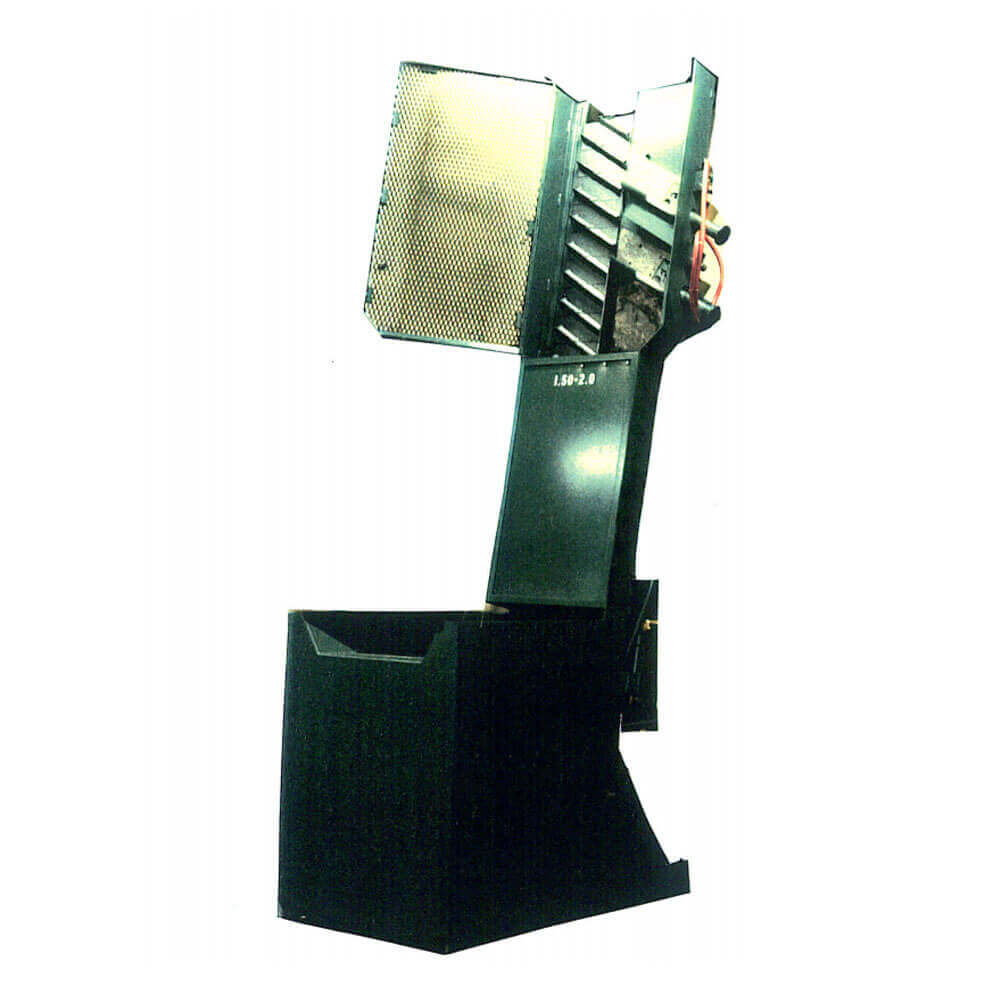

9336: 2400-C Angled Elevator Feeders

SO09336 - 2400-C Custom Feeder Feeding Forged Gear Blanks to Centerless Grinder

APPLICATION

Feed from six random-loaded floor mounted hoppers: conduit couplings – 1/2, 3/4, 1, 1 1/2, 1 1/2 and 2″ pipe size. Elevate then orient end to end into two individual vertical chutes to a height of 52″ above the floor at a rate of 420 to 660 per hour for sizes 1/2 to 1″ and 220 to 320 per hour for sizes 1 1/2 to 2″.

Note: The 2400-C feeders fed the smaller range and the 2500-C the larger. The feeders were equipped with dual on-demand tube tooling. These machines were feeding auto tappers.

  • 2400-C 6″ wide elevator belt, 12 cu. ft. hopper
  • 2500-C 12″ wide elevator belt, 12 cu. ft. hopper
  • Dwg P 6248 R 2400C
  • Dwg P 6251 T 2500C

WIDTH

6" and 12"

PARTS FED (SIZE)

1/2, 3/4, 1, 1 1/2, 1 1/2 and 2" pipe size

FEED RATE

420 to 660 per hour for sizes 1/2 to 1" and 220 to 320 per hour for sizes 1 1/2 to 2"
