CASE STUDY

10802: PROJECT FEEDING ROCKER ARM SHAFTS INTO PUNCH PRESS

Feedall Model
Model 3000

APPLICATION

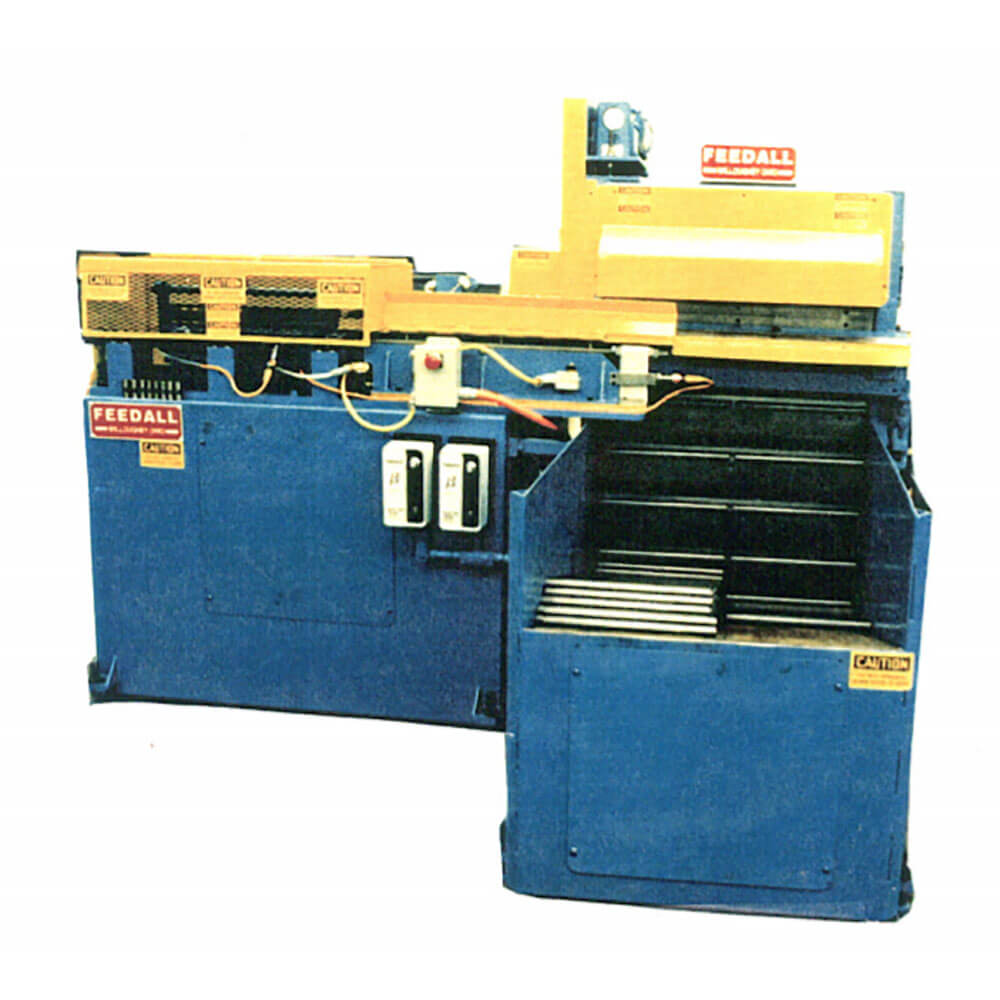

Feed from a tub loaded floor hopper (container will be open in front when tilted allowing shafts to roll diameter to diameter into the open front hopper steel tubular rocker arm shafts 7/8″ OD. X 1/8″ wall X 14 to 20″ LG. The shafts will be elevated from the hopper then discharged rolling to the front cross conveyor then conveyed to the transfer device, transferred into the pusher then advanced into a punch at 42″ above the floor at a rate of 15 to 20 per minute.
30″ wide elevator belt, 10 CU. Ft. Hopper.
DWG. P 7553 R1

WIDTH

30" wide elevator belt

FEED RATE

15 to 20 per minute
