CASE STUDY

10988: PROJECT FEEDING STEEL RODS INTO CENTERLESS GRINDER

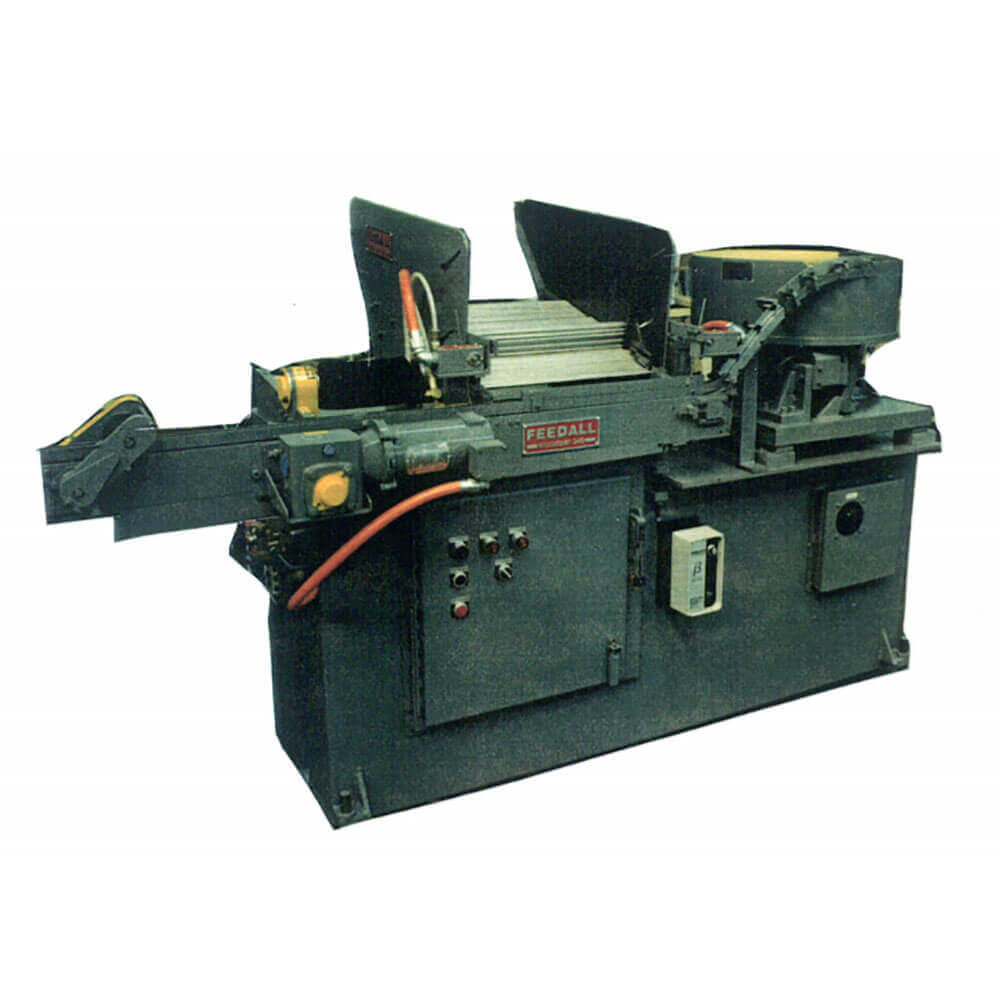

Feedall Model
Model 1700 D C/W Feeder Bowl

APPLICATION

Feed from manually loaded magazine rods, 3/8, 7/16, 1/2, 5/8, and 3/4″ DIA. X 3 1/2 to 12″ LG. in a feeder bowl rods, same DIAS. X 1 to 3 1/4″ LG. Rods will be fed to the front mounted cross conveyor then conveyed end to end to a centerless grinder at 42″ above the floor at a rate of 120″ per minute.
DWG. P 7636

FEED RATE

120" per minute
