CASE STUDY

17606: PROJECT FEEDING MOTOR SHAFTS INTO CENTERLESS GRINDER

Feedall Model

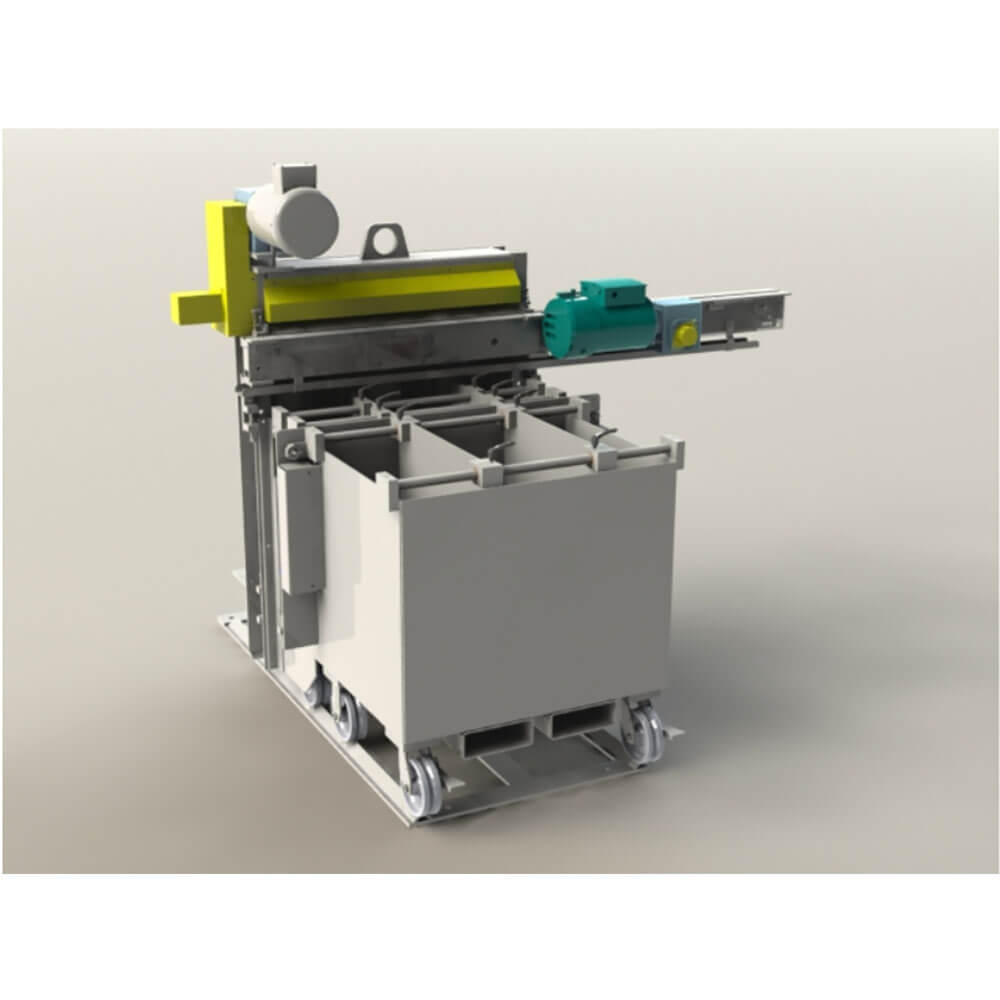

Model 3000 Elevating Hopper Feeder w/1650-1SC-72 Cross-Feed Conveyor

APPLICATION

Feed from a manually loaded, floor mounted hopper. The Motor Shafts will be loaded diameter –to- diameter in the part tub. The parts will be elevated from the hopper via a cleated belt and deposited onto a front-end mounted, cross-feed conveyor. The conveyor will translate the parts in a continuous, end-to-end stream to the workrest of a Centerless Grinder.

WIDTH

30” Wide Elevating Belt

DRIVE

3/4 HP/AC Motor w/Variable Frequency Controller

PARTS FED (SIZE)

Motor Shafts (0.50”Ø x 4.00”-27.00” Lg.)

FEED RATE

200 Inches/Minute
